MACHINE CAPACITY
| AF-1250 series |
|---|
| Work Piece | Controller | SPINDLE | Total Process Cycle Time |
Material | Material Dimension |
|---|---|---|---|---|---|

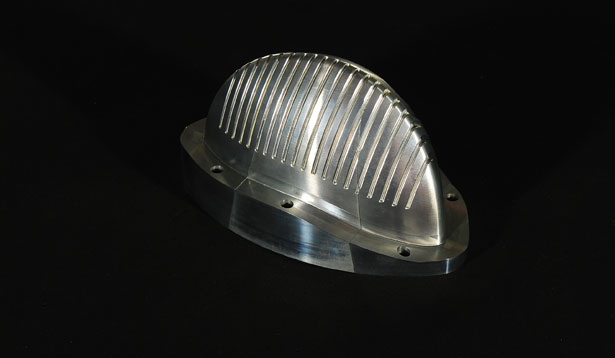

| Golf Parts Mould | FANUC 31i | HSK63A Built in 22,000 rpm |
52h30m | Aluminum | 196*84*86 |
| Tool | Diameter | Nose Ball Radius |
Tool Materials |
Processing Way |
Spindle Speed | Feed Rate |
|---|---|---|---|---|---|---|
| Nose Ball End Mill | 20 mm | 0.4 mm | Carbide | Rough Machining | 7,600 rpm | 4,000 mm/min |
| End Mill | 12 mm | 0 mm | Carbide | Precision Machining | 5,000 rpm | 1,200 mm/min |
| End Mill | 12 mm | 0 mm | Carbide | High-Precision Machining | 5,000 rpm | 1,200 mm/min |
| Ball End Mill | 10 mm | 5 mm | Carbide | Precision Machining | 8,000 rpm | 2,000 mm/min |
| Ball End Mill | 10 mm | 5 mm | Carbide | High-Precision Machining | 8,000 rpm | 2,000 mm/min |
| Ball End Mill | 4 mm | 2 mm | Carbide | Precision Machining | 12,000 rpm | 1,000 mm/min |
| Ball End Mill | 2 mm | 1 mm | Carbide | Precision Machining | 14,500 rpm | 800 mm/min |
| Ball End Mill | 4 mm | 2 mm | Carbide | High-Precision Machining | 12,000 rpm | 1,000 mm/min |
| Ball End Mill | 1 mm | 0.5 mm | Carbide | High-Precision Machining | 14,500 rpm | 400 mm/min |
| Ball End Mill | 0.6 mm | 0.3 mm | Carbide | High-Precision Machining | 400 rpm | 150 mm/min |
