MACHINE CAPACITY
| AF-1000 series |
|---|
| Work Piece | Controller | SPINDLE | Total Process Cycle Time |
Material | Material Dimension |
|---|---|---|---|---|---|

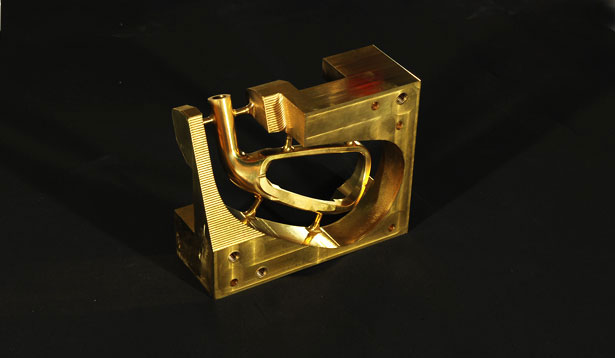

| Golf Head | FANUC 31i | Direct Drive 15000 rpm |
8h33m36s | Bronze | 150*120*70 |
| Tool | Diameter | Nose Ball Radius |
Tool Materials |
Processing Way |
Spindle Speed | Feed Rate |
|---|---|---|---|---|---|---|
| Nose Ball End Mill | 20 mm | 0.4 mm | Carbide | Rough Machining | 6,600 rpm | 4,000 mm/min |
| End Mill | 12 mm | 0 mm | Carbide | Precision Machining | 5,000 rpm | 2,000 mm/min |
| End Mill | 12 mm | 0 mm | Carbide | High-Precision Machining | 5,000 rpm | 1,200 mm/min |
| Nose Ball End Mill | 10 mm | 1 mm | Carbide | Precision Machining | 8,000 rpm | 2,000 mm/min |
| Ball End Mill | 6 mm | 3 mm | Carbide | Precision Machining | 12,000 rpm | 1,800 mm/min |
| Ball End Mill | 6 mm | 3 mm | Carbide | High-Precision Machining | 12,000 rpm | 1,800 mm/min |
| Ball End Mill | 2 mm | 1 mm | Carbide | Precision Machining | 14,000 rpm | 1,200 mm/min |
| Ball End Mill | 1 mm | 0.5 mm | Carbide | High-Precision Machining | 14,500 rpm | 800 mm/min |
| End Mill | 6 mm | 0 mm | Carbide | Precision Machining | 10,000 rpm | 1,000 mm/min |
| End Mill | 6 mm | 0 mm | Carbide | High-Precision Machining | 10,000 rpm | 1,000 mm/min |
