MACHINE CAPACITY
| F-16 series |
|---|
| Work Piece | Controller | SPINDLE | Total Process Cycle Time |
Material | Material Dimension |
|---|---|---|---|---|---|

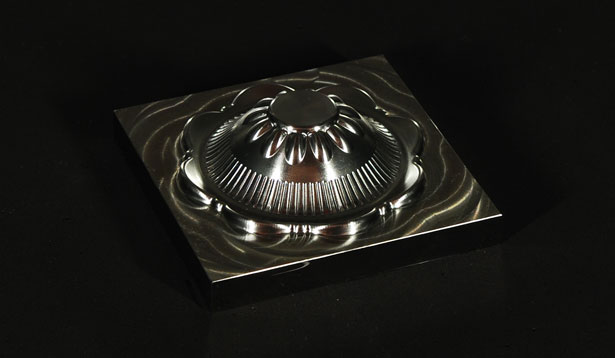

| Lamp Mold | FANUC 31i | HSK63A Built in 22000 rpm |
2h33m56s | P3 | 220*150*33.5 |
| Tool | Diameter | Nose Ball Radius |
Tool Materials |
Processing Way |
Spindle Speed | Feed Rate |
Cycle Time |
|---|---|---|---|---|---|---|---|
| Nose Ball End Mill | 20 mm | 0.4 mm | Carbide | Rough Machining | 6,600 rpm | 4,000 mm/min | 15m10s |
| Nose Ball End Mill | 10 mm | 1 mm | Carbide | Medium Machining | 8,000 rpm | 1,600 mm/min | 10m13s |
| Ball End Mill | 6 mm | 3 mm | Carbide | Medium Machining | 10,000 rpm | 1,200 mm/min | 5m25s |
| Ball End Mill | 4 mm | 2 mm | Carbide | High-Precision Machining | 12,000 rpm | 1,200 mm/min | 31m5s |
| Ball End Mill | 2 mm | 1 mm | Carbide | High-Precision Machining | 12,000 rpm | 800 mm/min | 1h32m3s |
