MACHINE CAPACITY
| F-16 series |
|---|
| Work Piece | Controller | SPINDLE | Total Process Cycle Time |
Material | Material Dimension |
|---|---|---|---|---|---|

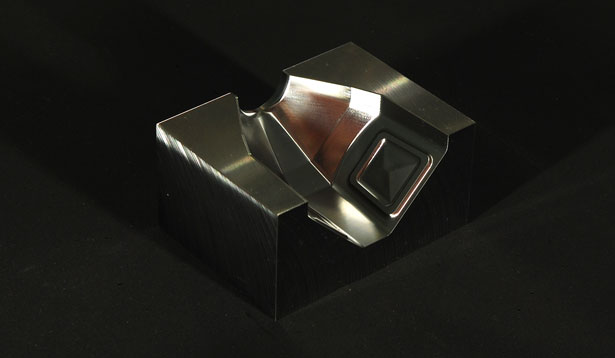

| PET Bottle Mold | FANUC 31i | HSK63A Built in 22000 rpm |
2h11m4s | P3 | 100*75.5*50 |
| Tool | Diameter | Nose Ball Radius |
Tool Materials |
Processing Way |
Spindle Speed | Feed Rate |
Cycle Time |
|---|---|---|---|---|---|---|---|
| Nose Ball End Mill | 25 mm | 4 mm | Carbide | Rough Machining | 3,000 rpm | 6,000 mm/min | 14m21s |
| Nose Ball End Mill | 10 mm | 1 mm | Carbide | Medium Machining | 8,000 rpm | 1,800 mm/min | 21m13s |
| Ball End Mill | 6 mm | 3 mm | Carbide | Medium Machining | 12,000 rpm | 2,000 mm/min | 24m31s |
| Ball End Mill | 3 mm | 1.5 mm | Carbide | Medium Machining | 14,500 rpm | 1,450 mm/min | 4m30s |
| Ball End Mill | 6 mm | 3 mm | Carbide | High-Precision Machining | 12,000 rpm | 1,800 mm/min | 50m1s |
| Ball End Mill | 3 mm | 1.5 mm | Carbide | High-Precision Machining | 14,500 rpm | 1,450 mm/min | 16m28s |
