MACHINE CAPACITY

AF-1000 series

Work Piece	Controller	SPINDLE	Total Process Cycle Time	Material	Material Dimension

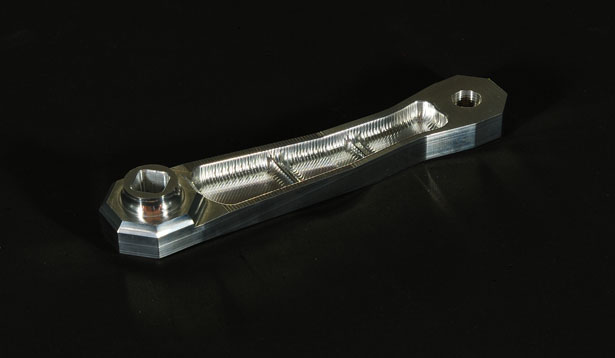

Bicycle Parts	FANUC 31i	Direct Drive 15000 rpm	1h3m37s	Aluminum	200*45*33

Tool	Diameter	Nose Ball Radius	Tool Materials	Processing Way	Spindle Speed	Feed Rate	Cycle Time
Nose Ball End Mill	20 mm	0.4 mm	Carbide	Rough Machining	6,600 rpm	4,000 mm/min	17m40s
End Mill	12 mm	0 mm	Carbide	Precision Machining	5,000 rpm	2,000 mm/min	7m14s
End Mill	12 mm	0 mm	Carbide	High-Precision Machining	5,000 rpm	1,200 mm/min	3m20s
End Mill	6 mm	0 mm	Carbide	High-Precision Machining	8,000 rpm	1,000 mm/min	5m36s
Center Drill	6 mm	0 mm	Carbide	Drilling	1,000 rpm	100 mm/min	17s
Drill	12 mm	0 mm	Carbide	Drilling	800 rpm	80 mm/min	40s
Ball End Mill	2 mm	1 mm	Carbide	High-Precision Machining	12,000 rpm	1,600 mm/min	13m20s
Ball End Mill	1 mm	0.5 mm	Carbide	High-Precision Machining	14,500 rpm	1,000 mm/min	15m30s
