MACHINE CAPACITY
| F-16 series |
|---|
| Work Piece | Controller | SPINDLE | Total Process Cycle Time |
Material | Material Dimension |
|---|---|---|---|---|---|

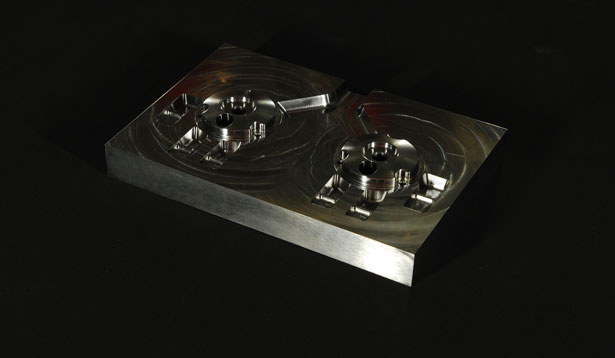

| Lamp Mold | FANUC 31i | xxxxxx | 6h42m | P3 | 100*75.5*50 |
| Tool | Diameter | Nose Ball Radius |
Tool Materials |
Processing Way |
Spindle Speed | Feed Rate |
Cycle Time |
|---|---|---|---|---|---|---|---|
| D25R4 | 25 mm | 4 mm | Carbide | Rough Machining | 4,200 rpm | 4,000 mm/min | 27s |
| D12R1 | 12 mm | 1 mm | Carbide | Rough Machining | 6,600 rpm | 1,600 mm/min | 8s |
| D20R0.4 | 20 mm | 0.4 mm | Carbide | High-Precision Machining | 4,400 rpm | 1,000 mm/min | 3m11s |
| D10R1 | 10 mm | 1 mm | Carbide | Precision Machining | 8,000 rpm | 1,500 mm/min | 16m26s |
| D6R0.5 | 6 mm | 0.5 mm | Carbide | High-Precision Machining | 6,000 rpm | 1,600 mm/min | 1h1m23s |
| R2 | 4 mm | 2 mm | Carbide | High-Precision Machining | 14,000 rpm | 1,600 mm/min | 2h1s |
| D3R0.3 | 3 mm | 0.5 mm | Carbide | High-Precision Machining | 14,500 rpm | 1,200 mm/min | 15 s |
| D0.2 | 0.2 mm | 0 mm | Carbide | High-Precision Machining | 14,500 rpm | 40 mm/min | 2h30m |
