The one-piece casting headstock has a net weight over 4,000 kg, which gives outstanding rigidity and also provides an ideal balance for super heavy workpieces.

The spindle is support by high rigidity bearings for maximum level of support and precision. Bearing configuration is designed for super heavy-duty cutting with ultra-smooth performance and long term durability with a higher level of accuracy.

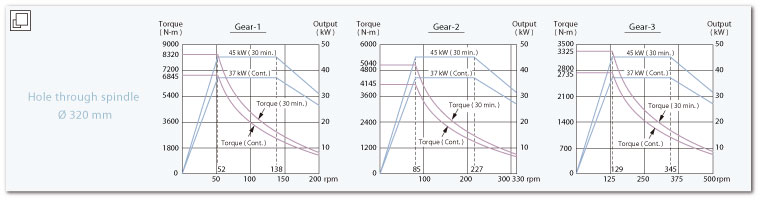

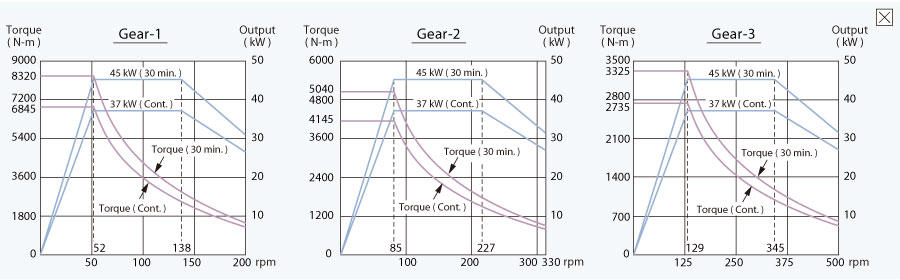

The 3-speed super heavy-duty gear head incorporates advance mechanical designs. Mated with a 45 kW ( 30 min. ) motor to provide tremendous amount of low-end torque to handle heavy material removal on large diameter parts. It provides 8,320 Nm torque under 52 rpm to easily overcome any working applications.

The spindle uses a high performance lubrication system to efficiently and evenly lubricate the spindle bearings. Also, with a special maze protection design, it can prevent the gear box from contamination thus extending the life of the bearings.
