HIGH SPEED CNC TURNING CENTERS
With the latest machine tools technology and precision turning performance, GOODWAY brings you the new GLS-1500 series high speed CNC turning center. Using 2 types of bed combined with super rigidity, high speed turning capability and compact size provides you with super efficiency cutting power. The GLS-1500 series equipped with an optional live tooling turret, Y-axis and sub-spindle can work on turning, milling, drilling tasks at the same time to increase the output capacity with high end value to meet your needs of today and tomorrow.
30˚ slant-bed design provides smooth chip disposal and easier operator access.
Steel way covers and special steel wipers molded with industrial strength rubber are used for durability.
Fully enclosed splashguards keep chips and coolant contained for a safe clean working environment.
The auto lubrication system delivers metered amounts of lubrication to the slide ways, ball screws, and vital components. Distribution is automatically shut off during idling to prevent waste.
| SERIES | GLS-1500 SERIES | GLS-2000 SERIES | |
|---|---|---|---|
| Chuck size | 6" | 8" | |
| Bar Capacity | Ø 51 mm ( 2" ) | Ø 65 mm ( 2.55" ) | |
| Turning Length*2 | 330 mm ( 12.9" ) | GLS-1500 / M | GLS-2000 / M |
| 630 mm ( 12.9" ) | GLS-1500L / LM / LY / LMS / LYS*1 | GLS-2000L / LM / LY / LMS / LYS*1 | |
*2 Individual models may vary, detail specication please see work range diagram.
Z-axis carriage manual locks onto the tailstock base and moves it to the desired position with precision accuracy.
The extension of the shaft can be controlled by program, which makes it easier to insert the center into the center hole.

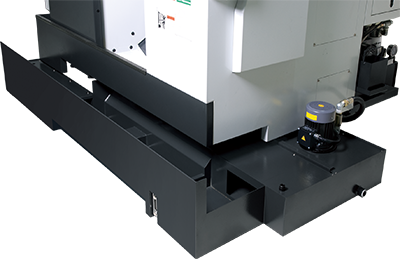

Large 100L separate type coolant tank provides optimal heat dispersion and lower coolant temperature, which will help extend coolant life.
Compact structure and cover design minimizes factory space usage which increases efficiency.
