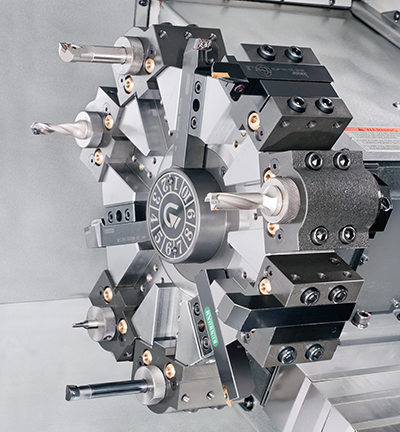

A high-speed servo motor indexing system provides the 10 or 12-station turret with a 0.2 sec. indexing time. Large diameter high precision curvic couplings and hydraulic clamping are used to enhance tool indexing accuracy and turret disk rigidity.

The curvic couplings provide a large contact area and are designed with an auto-clean feature not seen on traditional couplings.

Convex Teeth	Concave Teeth
Curvic Coupling

Optional 24-tool turret and gang type turret are available to provide you with more machining flexibility.

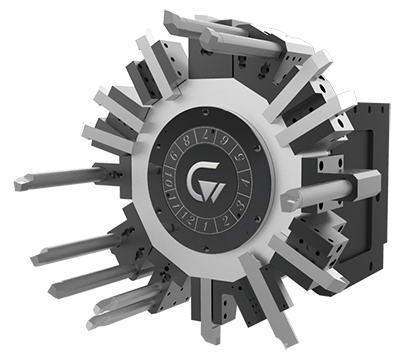

Optional 24-station Turret

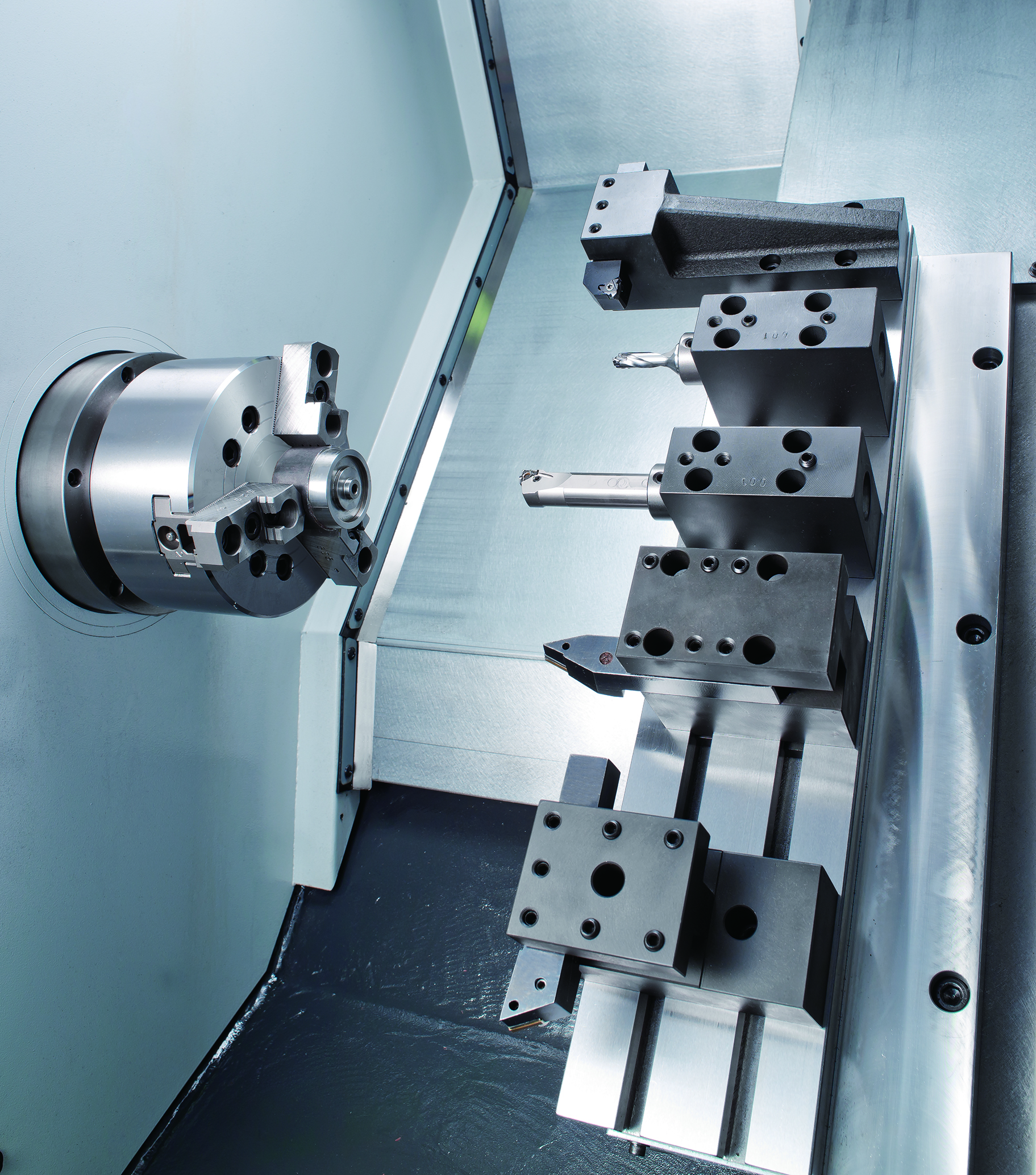

Optional Gang Type Turret

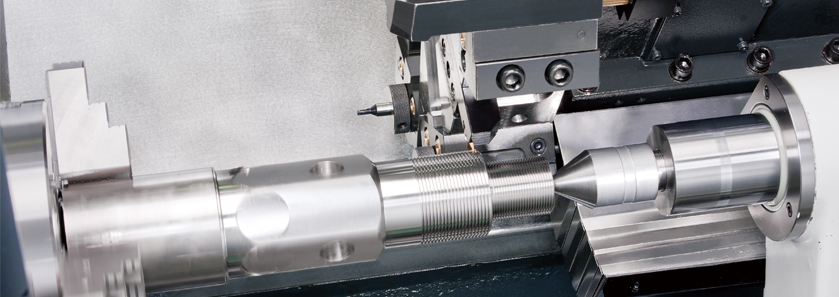

Live tooling and C-axis control capabilities on the GLS-1500 series allow the machine to perform multiple tasks on a work-piece, such as turning, milling, drilling and tapping. This eliminates manpower and cycle time, while reducing accuracy lost, which will occur if the part is moved from one machine to another.

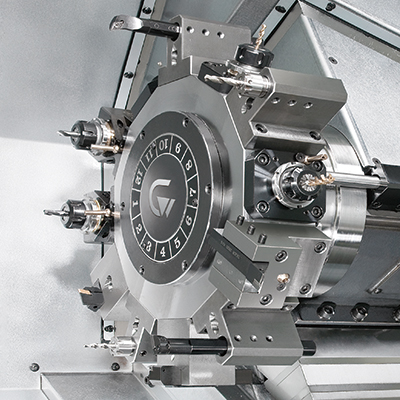

GOODWAY live tooling turret utilizes advanced servo indexing technology to achieve 0.2 second indexing time for adjacent stations and 0.5 second for stations at the opposite end of the disk.

With the latest technology, live tooling is driven by an AC servo motor to provide ample power, in the form of torque. Now, even the toughest of jobs may be tackled without a sweat.
