• The 24T disk type tool magazine combined with the arm-type automatic tool changer shortens the tool exchange time, thereby enhancing overall processing efficiency.

• Two way arbitrary tool selection (Std.) : the tool magazine automatically selects the shortest rotation direction to rotate the tool to the exchange position, further reducing tool exchange times.

• Pre-selecting a tool ( moving it to the tool exchange position prior to the actual tool exchange ) does not interrupt the machining operation and can save even more time.

• On request a 32T disk type magazine or a 50T chain type magazine are available.

Top type design

• Minimized foot print.

• More compact production line arrangement.

• The automatic tool magazine door avoids contamination of the tools or the ATC by blocking cutting fluid and chips.

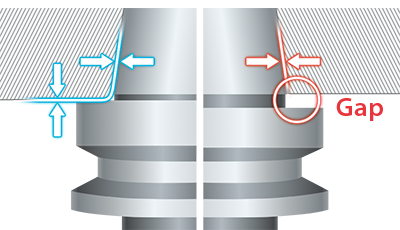

Dual contact spindle taper design

The EH5 series employs the advanced Dual Contact Spindle taper design, which not only avoids the taper run out but also enhances cutting rigidity. This is especially suitable for high speed machining. (Std.)

( BBT, BCV, BDV, etc. can be selected according to actual demands. )
