Chip Removal System
The advanced chip flushing system assists in maintaining ultimate accuracy, achieving long term machining reliability, and reducing downtime for manual chip removal by rapidly cooling down work-piece and tool while simultaneously removing chips.

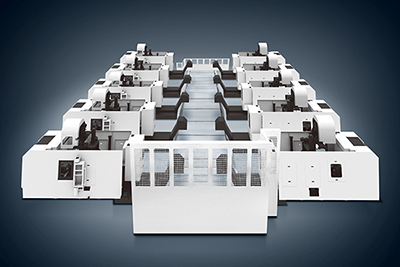

The rear-exit coolant tank and chip conveyor design can easily be integrated with a centralized chip removal system, suitable for automated production line arrangements.
Large coolant tank with 685 L capacity and a large surface area for best cooling results. The roll-out design makes maintenance faster and easier.
The nozzles of the chip flush system can be adjusted to reach any position inside the machine, avoiding chip pile up and providing the best cooling effect at the same time.

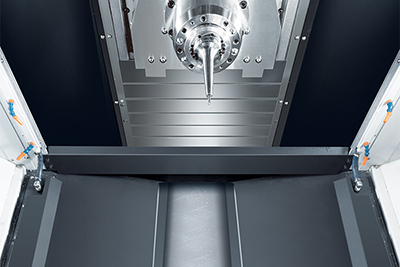

The central chip channel is covered by stainless steel; the smooth surface greatly reduces the probability of a chip pile up inside the machine.

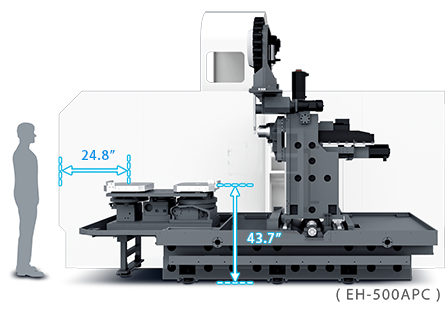

• Ergonomics were taken into account while designing the machine to make work-piece setup fast, convenient, and safe.
• All models are designed with large doors and overhead clearance to allow for work-piece loading and unloading by crane or robot arm, which reduces the operator's workload.

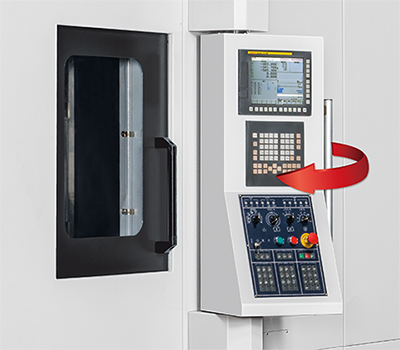

Swiveling operator panel and
large impact resistant windows.

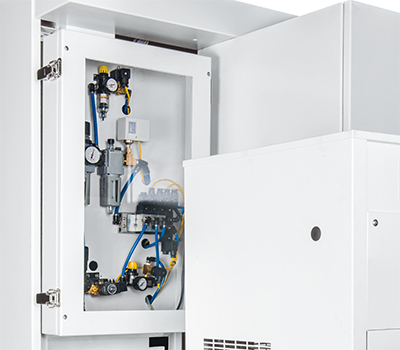

Easily accessible pneumatic control unit.
Independent work table exchange operation panel.
( EH-500APC only )

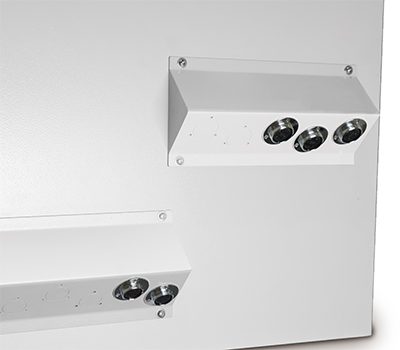

Military grade electrical connectors.
