Horizontal 5 axes Machining Centers
Combining advanced 5 axes control technology and our extensive horizontal machine development experience, EH5 series' powerful 5 axes simultaneous machining capability can overcome any difficult cutting tasks and realize unlimited possibilities.
Super rigid headstock structure
The unique headstock and saddle design maintains excellent structural rigidity even with the Z-axis fully extended.
High performance A / B axes trunnion table
With a maximum cutting torque of 9,700 Nm and 0.001° B-axis indexing, the EH5 series provides heavy cutting and high precision capabilities.
Work table variation
A variety of work tables is available for the EH series, offering a perfect solution to precision mold making, mass production and any other task.
Unit : inch
Models | EH-500 | EH-500APC | EH5-500 | ||
---|---|---|---|---|---|
Rotary axis | - | A-axis | B-axis | B-axis | A / B axes |
Table size | 19.68" x 19.68" | 24.4" x 14.17" | 19.68" x 19.68" | ( 19.68" x 19.68" ) x 2 | 24.4" x 14.17" ( Ø 15.74" ) |
Compact design

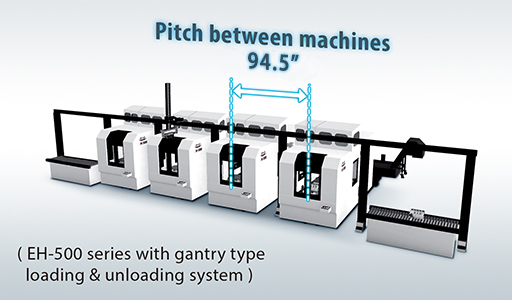

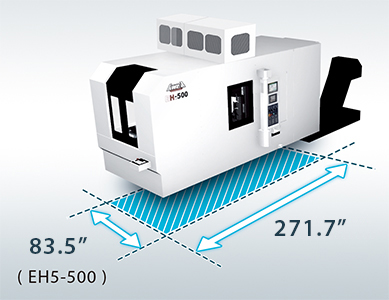

The compact, minimal footprint design effectively raises the factory floor utilization and allows for the setup of an automated production line even in the small workshops.
