MACHINE CAPACITY
| SW-20 series |
|---|
| Work Piece | Controller | Maximum Spindle Speed |
Total Process Cycle Time |
Material | Material Dimension |
|---|---|---|---|---|---|

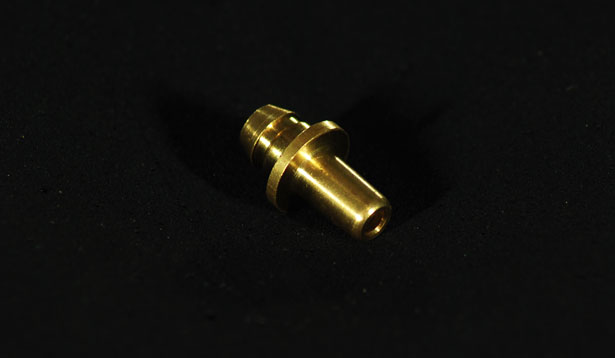

| Pneumatic and Hydraulic Parts |
FANUC 31i | 10,000 rpm | 24.3 s | Brass | D7.9 |
| Process H1 |
Tool Specifications |
Tool Materials |
Processing Way |
Spindle Speed |
Cutting Speed |
Feed Rates |
Cycle Time |
|---|---|---|---|---|---|---|---|
| 1 | D5.0 Center Drill |
HSS | Drilling | 3,820 rpm | 60 M/min | 382.0 mm/min | 2.3 s |
| 2 | E1.0 Grooving Tool |
Carbide | Turning | 4,835 rpm | 120 M/min | 241.8 mm/min | 9.3 s |
| 3 | E2.0L Cut-Off Tool |
Carbide | Turning | 4,029 rpm | 100 M/min | 161.2 mm/min | 4.7 s |
| 4 | Transfer | N / A | N / A | N / A | N / A | N / A | 4 s |
| Process H2 |
Tool Specifications |
Tool Materials |
Processing Way |
Spindle Speed |
Cutting Speed |
Feed Rates |
Cycle Time |
|---|---|---|---|---|---|---|---|
| 1 | Transfer | N / A | N / A | N / A | N / A | N / A | 4 s |
| 2 | D5.0 Center Drill |
HSS | Drilling | 3,820 rpm | 60 M/min | 382.0 mm/min | 2.3 s |
| 3 | D2.0 Drill Bit | HSS | Drilling | 4,775 rpm | 30 M/min | 286.5 mm/min | 8 s |
| 4 | Receiver | N / A | N / A | N / A | N / A | N / A | 5 s |
