MACHINE CAPACITY
| GLS-150Y series |
|---|
| Work Piece | Controller | Maximum Spindle Speed |
Total Process Cycle Time |
Material | Material Dimension |
|---|---|---|---|---|---|

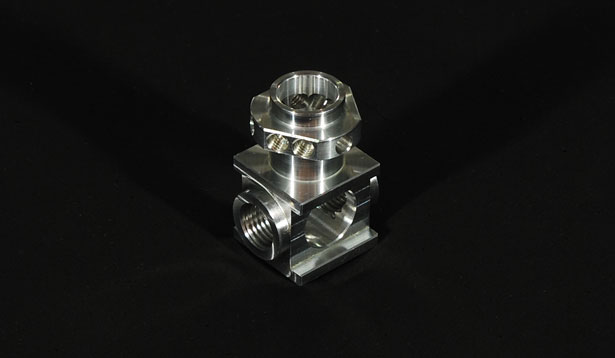

| Adapter | FANUC 31i | 6,000 rpm | 23m14s | aluminum | D42 |
| Process | Tool Specifications |
Tool Materials |
Processing Way |
Spindle Speed |
Cutting Speed |
Feed Rates |
Cycle Time |
|---|---|---|---|---|---|---|---|
| 1 | 15.0mm U-Drill | Carbide | Drilling | 2,100 rpm | 99 M/min | 315 mm/min | 11.3s |
| 2 | MCLNR2020K12 O.D Turning Tool |
Carbide | Turning | 3,000 rpm | 300 M/min | 900 mm/min | 18.2s |
| 3 | S12MSCLPR08-14 I.D Turning Tool |
Carbide | Turning | 3,000 rpm | 151 M/min | 360 mm/min | 12.5s |
| 4 | 10.0mm End Mill | Carbide | Milling | 2,400 rpm | 76 M/min | 300 mm/min | 68.3s |
| 5 | 10.0mm 90° Spot Drill | Carbide | Drilling | 2,400 rpm | 76 M/min | 400 mm/min | 25.3s |
| 6 | 5.3mm Drill bit | HSS | Drilling | 3,500 rpm | 58 M/min | 315 mm/min | 47.0s |
| 7 | 10.0mm 90° Spot Drill | Carbide | Milling | 2,400 rpm | 76 M/min | 300 mm/min | 29.0s |
| 8 | M6*P1.0-TAP | Carbide | Tapping | 500 rpm | 10 M/min | 500 mm/min | 34.3s |
| 9 | GHGR20-3 Grooving Tool | Carbide | Turning | 1,600 rpm | 100 M/min | 160 mm/min | 64.4s |
| 10 | 10.0mm 90° Spot Drill | Carbide | Milling | 2,400 rpm | 76 M/min | 400 mm/min | 41.3s |
| 11 | DGTR20B-3D40 Grooving Tool | Carbide | Milling | 1,300 rpm | 80 M/min | 130 mm/min | 21.5s |
| 12 | 10.0mm End Mill | Carbide | Milling | 3,000 rpm | 100 M/min | 450 mm/min | 271.3s |
| 13 | 12.0mm Drill | HSS | Drilling | 3,000 rpm | 76 M/min | 200 mm/min | 39.1s |
| 14 | 10.0mm End Mill | Carbide | Milling | 2,400 rpm | 100 M/min | 450 mm/min | 54.7 |
| 15 | 10.0mm End Mill | Carbide | Milling | 2,400 rpm | 76 M/min | 300 mm/min | 275.3s |
| 16 | 10.0mm 90° Spot Drill | Carbide | Milling | 3,500 rpm | 76 M/min | 300 mm/min | 92.4s |
| 17 | 10.0mm*P1.5 銑牙刀 | Carbide | Milling | 2,400 rpm | 76 M/min | 150 mm/min | 110.7s |
| 18 | 10.0mm End Mill | Carbide | Milling | 500 rpm | 100 M/min | 450 mm/min | 27.2s |
| 19 | MCLNR2020K12 O.D Turning Tool |
Carbide | Turning | 1,600 rpm | 300 M/min | 450 mm/min | 8.8s |
| 20 | S12MSCLPR08-14 I.D Turning Tool |
Carbide | Turning | 2,400 rpm | 150 M/min | 360 mm/min | 12.5s |
| 21 | DGTR20B-3D40 Grooving Tool |
Carbide | Turning | 1,300 rpm | 80 M/min | 130 mm/min | 18.2s |
| 22 | 10.0mm 90° Spot Drill | Carbide | Milling | 2,400 rpm | 100 M/min | 450 mm/min | 93.0s |
| 23 | DGTR20B-3D40 Grooving tool |
Carbide | Turning | 1,300 rpm | 80 M/min | 130 mm/min | 16.8s |
