MACHINE CAPACITY
| GTS-150MMX series |
|---|
| Work Piece | Controller | Maximum Spindle Speed |
Total Process Cycle Time |
Material | Material Dimension |
|---|---|---|---|---|---|

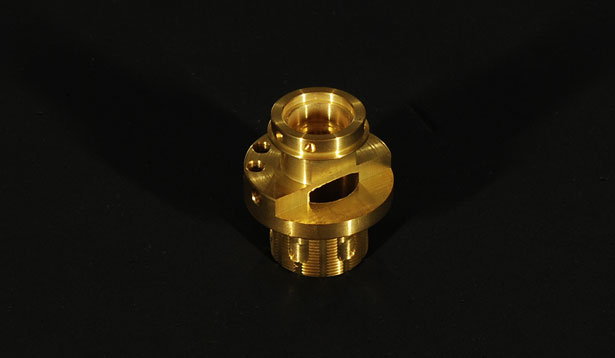

| Sleeve | FANUC 31i | 6,000 rpm | 6m51s | Brass | 40 mm |
| Process H1 |
Tool Specifications |
Tool Materials |
Processing Way |
Spindle Speed |
Cutting Speed |
Feed Rate |
Cycle Time |
|---|---|---|---|---|---|---|---|
| 1 | Cut-Off Tool | Carbide | Stopper and Cut-off | 1,194 rpm | 150 M/min | 119.4 mm/min | 47.6 s |
| 2 | 3.2 Center Drill | HSS | Center Drilling | 2,005 rpm | 32 M/min | 200.5 mm/min | 7.1 s |
| 3 | 8.2 Drill Bit | HSS | Drilling | 3,998 rpm | 103 M/min | 799.7 mm/min | 7.1 s |
| 4 | I.D Turning Tool | Carbide | Turning | 2,992 rpm | 141 M/min | 598.4 mm/min | 10 m |
| 5 | O.D Turning Tool | Carbide | Turning | 3,993 rpm | 350 M/min | 1197.9 mm/min | 19 s |
| 6 | 8.0*90 Spot Drill |
HSS | Center Drilling | 2,005 rpm | 63 M/min | 300.8 mm/min | 36 s |
| 7 | 3.0 Drill | HSS | Drilling | 4,032 rpm | 38 M/min | 403.2 mm/min | 25.4 s |
| 8 | 4.3 Drill Bit | HSS | Drilling | 3,997 rpm | 54 M/min | 399.7 mm/min | 17.2 s |
| 9 | R0.75 Nose Ball End Mill | HSS | Milling | 3,979 rpm | 75 M/min | 198.9 mm/min | 22.7 s |
| 10 | 3.0 Grooving Tool | Carbide | Turning | 1,592 rpm | 150 M/min | 238.7 mm/min | 24.4 s |
| 11 | Φ45 x 6.5 Cutter | Carbide | Milling | 995 rpm | 150 M/min | 243.7 mm/min | 170 s |
| 12 | 6.0*90 Spot Drill |
HSS | Center Drilling and Chamfering | 2,005 rpm | 63 M/min | 300.3 mm/min | 24 s |
| Process H2 |
Tool Specifications |
Tool Materials |
Processing Way |
Spindle Speed |
Cutting Speed |
Feed Rate |
Cycle Time |
|---|---|---|---|---|---|---|---|
| 1 | D40 U-Drill | HSS | Drilling | 2,005 rpm | 126 M/min | 401.1 mm/min | 9.9 s |
| 2 | I.D Turning Tool | Carbide | Turning | 2,995 rpm | 207 M/min | 404.2 mm/min | 15.6 s |
| 3 | Inner Grooving Tool | Carbide | Turning | 1,505 rpm | 104 M/min | 150.5 mm/min | 8.6 s |
| 4 | O.D Turning Tool | Carbide | Turning | 3,714 rpm | 350 M/min | 835.55 mm/min | 22.1 s |
| 5 | O.D Threading Tool | Carbide | Turning | 1,996 rpm | 163 M/min | 1,195.6 mm/min | 18.1 s |
| 6 | R2.0 Nose Ball End Mill | HSS | Milling | 3,024 rpm | 57 M/min | 339.2 mm/min | 55.7 s |
| 7 | 6.0 End Mill | HSS | Milling | 3,979 rpm | 75 M/min | 397.9 mm/min | 92.4 s |
| 8 | R1.5 Nose Ball End Mill | HSS | Milling | 3,501 rpm | 33 M/min | 297.6 mm/min | 18.5 s |
| 9 | 6.0*90 Spot Drill | HSS | Center Drilling and Chamfering | 2,005 rpm | 63 M/min | 300.8 mm/min | 23 s |
| 10 | 4.3 Drill Bit | HSS | Drilling | 3,516 rpm | 48 M/min | 298.9 mm/min | 35.1 s |
| 11 | M5x0.8 TAP | HSS | Threading | 509 rpm | 8 M/min | 407.4 mm/min | 53.1 s |
