MACHINE CAPACITY
| GS-200Y series |
|---|
| Work Piece | Controller | Maximum Spindle Speed |
Total Process Cycle Time |
Material | Material Dimension |
|---|---|---|---|---|---|

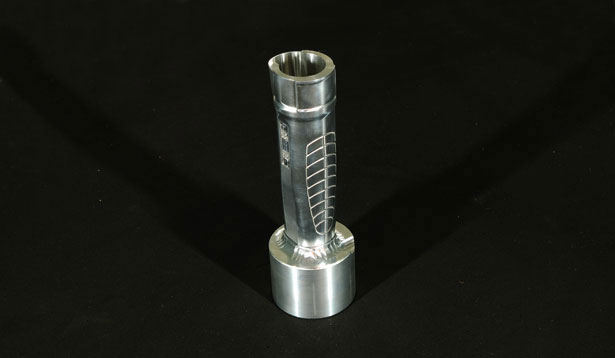

| Grip | FANUC31i | 4,800 rpm | 15h15m23s | Aluminum | D67*200L |
| Process | Tool Specifications |
Tool Materials |
Processing Way |
Spindle Speed |
Cutting Speed |
Feed Rates |
Cycle Time |
|---|---|---|---|---|---|---|---|
| 1 | U-drill | Carbide | Drilling | 1,500 rpm | 150 M/min | 150 mm/min | 1m4s |
| 2 | I.D turning tool | Carbide | Turning | 1,200 rpm | 113 M/min | 180 mm/min | 3m45s |
| 3 | R8.0mm Ball End Mill | Carbide | Milling | 1,700 rpm | 85 M/min | 340 mm/min | 6m42s |
| 4 | R6.0mm Ball End Mill | Carbide | Milling | 2,700 rpm | 101 M/min | 430 mm/min | 25m |
| 5 | R8.0mm Ball End Mill | Carbide | Milling | 1,700 rpm | 85 M/min | 340 mm/min | 179m11s |
| 6 | R4.0mm Ball End Mill | Carbide | Milling | 2,000 rpm | 100 M/min | 240 mm/min | 140m1s |
| 7 | R3.0mm Ball End Mill | Carbide | Milling | 2,300 rpm | 43 M/min | 230 mm/min | 474m5s |
| 8 | D4.0 End Mill | Carbide | Milling | 4,000 rpm | 100 M/min | 160 mm/min | 57m21s |
| 9 | D2.0 End Mill | Carbide | Milling | 6,000 rpm | 75 M/min | 240 mm/min | 20m2s |
| 10 | D1.0 End Mill | Carbide | Milling | 10,000 rpm | 31 M/min | 300 mm/min | 4m22s |
| 11 | O.D turning tool | Carbide | Turning | 3,000 rpm | 250 M/min | 600 mm/min | 3m50s |
