MACHINE CAPACITY
| GCL-2 series |
|---|
| Work Piece | Controller | Maximum Spindle Speed |
Total Process Cycle Time |
Material | Material Dimensions |
|---|---|---|---|---|---|

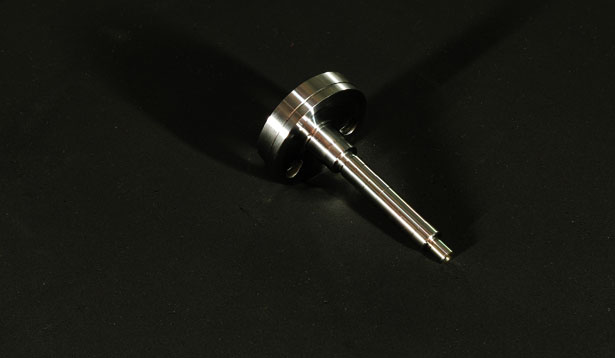

| Crank Shaft | FANUC Oi-TD | 4,500 rpm | 1m30s | Iron Castings | D73*123mm |
| Process | Tool Specifications |
Tool Materials |
Processing Way |
Spindle Speed |
Cutting Speed |
Feed Rates |
Cycle Time |
|---|---|---|---|---|---|---|---|
| 1 | MTJNR2525M16N O.D Turning Tool |
Carbide | Turning | 2,500 rpm | 180 M/min | 625 mm/min | 42s |
| 2 | MTJNR2525M16 O.D O.D Turning Tool |
Carbide | Turning | 2,500 rpm | 200 M/min | 425 mm/min | 9s |
| 3 | Face Grooving Tool | Carbide | Turning | 2,600 rpm | 200 M/min | 312 mm/min | 39s |
