ULTIMATE TURNING POWER

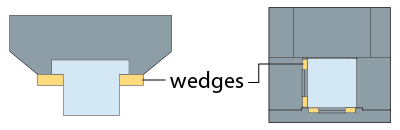

Super-sized Square Ram
The square ram on the tooling spindle is adopted with a closed-type and fixed with 8 sets of powerful wedges. This offer the GV-1 series with greater structural rigid and machining accuracy compared peer models with a semi-closed type square ram structure.
Z-axis is balanced by dual counterweight hydraulic cylinder, this can avoid unbalanced torque and make sure GV-1 excellent processing accuracy.
Semi-closed Type Square Ram ( Peer models ) |
Closed-type Square Ram ( GV-1 series ) |
Coolant & Chip Removal Capacity
Machine standard include coolant through spindle and coolant around spindle. High pressure coolant system ( 70 bar ~120 bar ) is optional function.
Wide chip trough is designed by large angle of inclination, by working with chips wash down coolant system, chips can be easily brought out through cutting area.

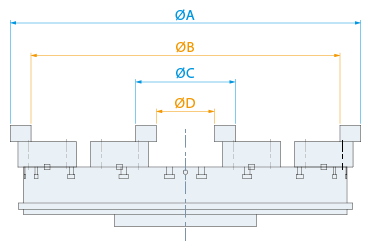

Max. Clamping Range
Standard 4-jaws individual manual chuck.
Unit : mm
Max. Clamping Range | A | B | C | D |
---|---|---|---|---|
GV-1100 | 1,165 | 1,005 | 355 | 195 |
GV-1200 | 1,355 | 1,195 | 385 | 225 |
GV-1600 | 1,675 | 1,515 | 385 | 225 |
GV-2000 | 1,995 | 1,835 | 385 | 225 |
High Torque Work-piece Spindle
The high torque work-piece spindle is equipped with a powerful FANUC 45 kW spindle motor that delivers a maximum torque output of 23,900 Nm*1 at 18 rpm, ideal for heavy-duty cutting conditions. *1:GV-1600 / GV-2000 series
The super rigidity, high rotation accuracy cross roller bearing can sustain radial, axial and torque compound loads to ensure machining accuracy under long-term heavy work loads and extend the service life of the spindle.
Work-piece Spindle Output
