ULTIMATE TURNING POWER
P4 grade high precision bearings are directly assembled for maximum level of support. Bearing configuration is designed for super heavy-duty cutting and long term durability with a higher level of accuracy.

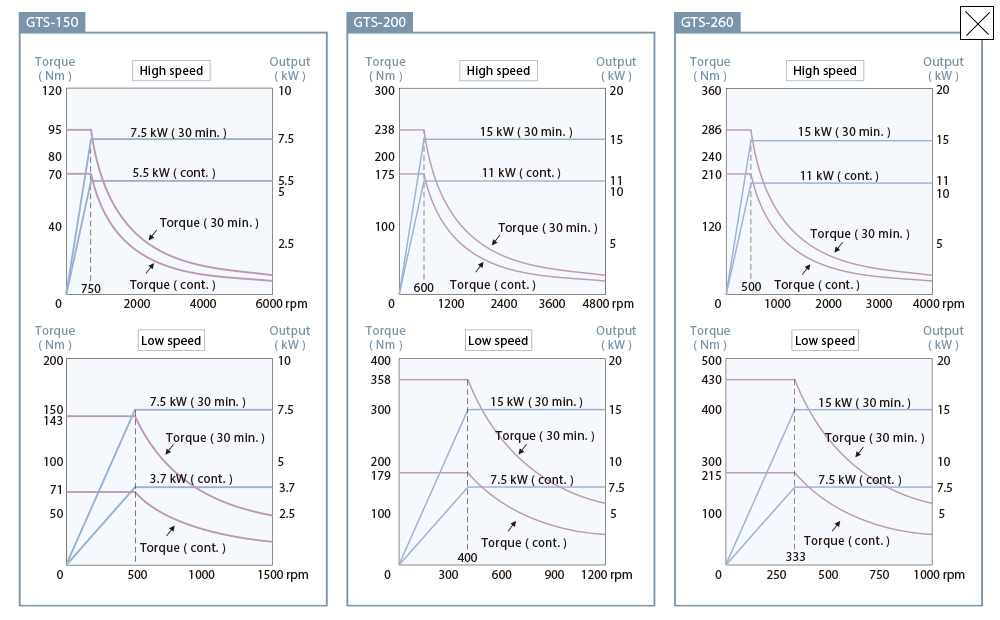

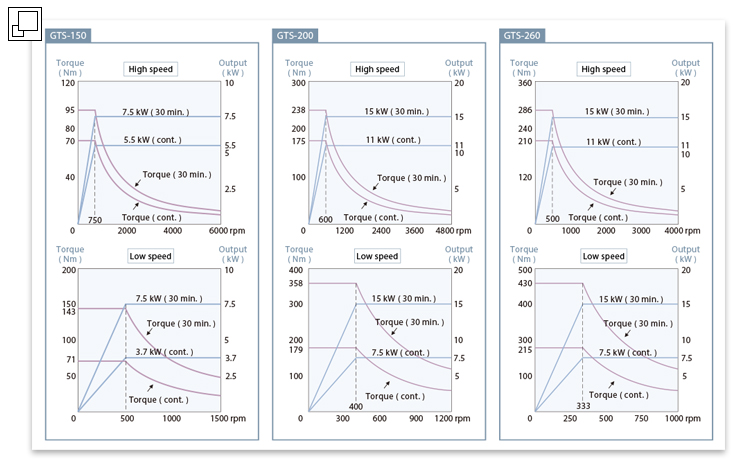

Generating twice the torque output of standard motors, the standard wide-range spindle motor is designed to reach full output at 1/2 the RPM of standard motors, providing the ability to take heavier cuts in the lower RPM ranges.

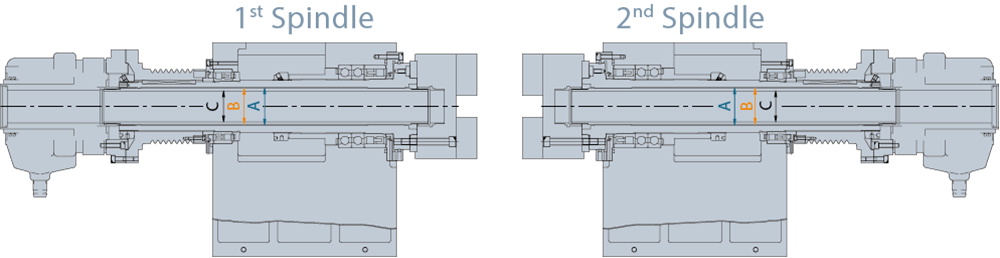

Unit:inch
| A | B | C |
|---|
| GTS-150 | 2.4" | 1.96" | 1.69" |
| GTS-200 | 2.59" | 2.55" | 2.04" |
| GTS-260 | 2.99" | 2.95" | 2.59" |
