EXTREME MACHINING PERFORMANCE

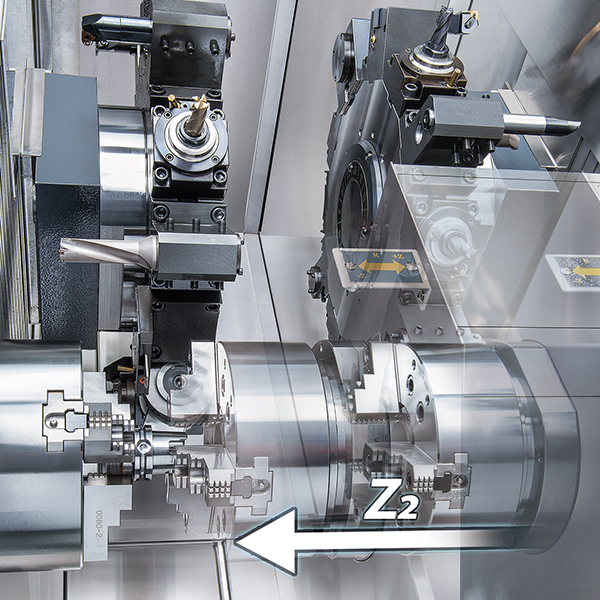

2nd Spindle Catches Parts Automatically
2nd spindle catches parts from 1st spindle and automatically machining rear side to avoid the error of movement manually by the operator.

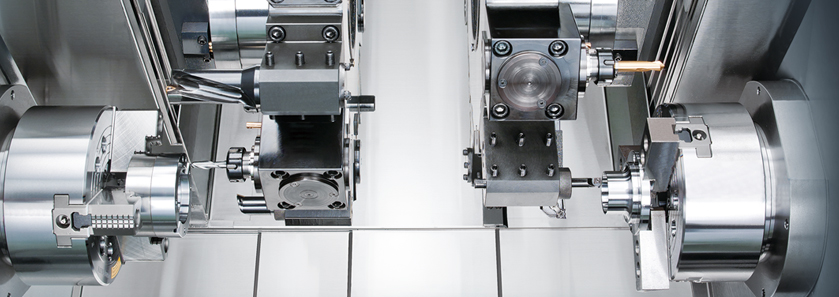

Twin Spindles Simultaneous Cutting
By clamping two ends of the long bar on each spindle and rotate synchronous to avoid the run out of rotating by single side clamping.
Front / Rear Side Synchronous Cutting
The 1st and 2nd spindle synchronous cutting makes GTS series functional as two multi-tasking machines.
Top
ACCESSORIES & APPLICATIONS
Small Parts
With optional bar feeder
H1 Cut-off
Synchronization cut-off
H2 Workpiece Support
Spindle stop → H2 advance with chuck open → Chuck close → Synchronization cut-off → H2 retract after cut-off
H1 Load Bar
Spindle stop → Collect chuck open → Load Bar → Collect chuck close → Spindle run → O.D. and Thread machining
H2 Turn / Mill Operation
Turning / drilling → Milling → Eject to parts catcher
Long Parts
With optional bar feeder
H1 Drilling
C-axis brake → Drilling → Cut-off workpiece
H2 Workpiece Support
Chuck hold workpiece
H1 Load Bar
Collect chuck open → Load Bar → Collect chuck close → O.D. and Thread machining
H2 Turn / Mill Operation
End face and O.D. machining → Finished
Casting / Forge Parts
H1 Workpiece Support
Workpiece finished in H1 → Spindle stop / chuck open → Load new workpiece / chuck close
H2 Workpiece Support
Spindle stop → H2 advance with chuck open → H2 retract after cut-off
H1 Turn operation
Synchronization → O.D. machining → Bore machining
H2 Turn / Drill Operation
END face and O.D. machining → Drilling Finished
