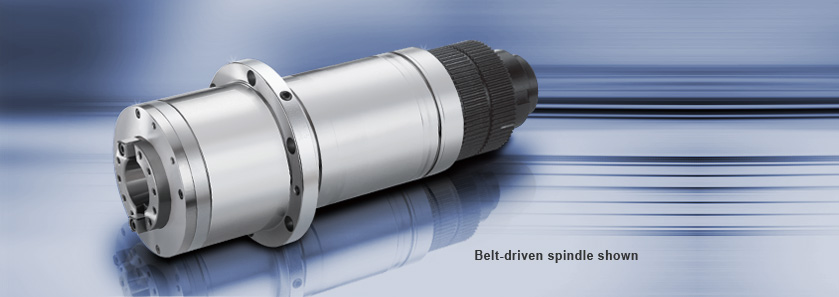

The high torque belt type spindle provides 8,000 / 10,000 spindle speed.

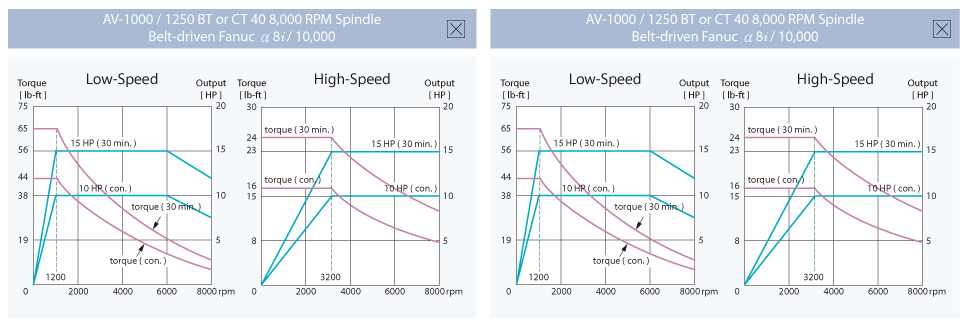

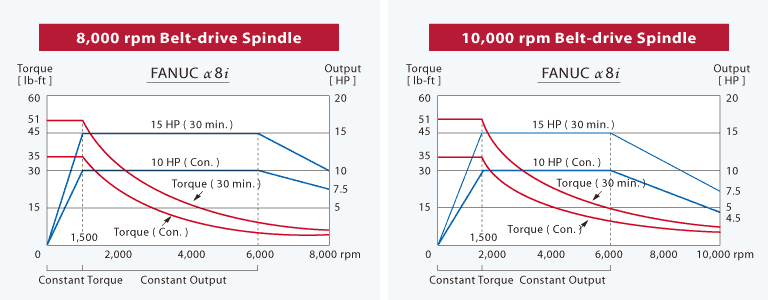

The spindle is equipped with FANUC α8i motor, which provides maximum output of 11 kW ( 15 HP ).

All series are standard with spindle oil cooler system to prevent thermal expansion effects and to decrease thermal deformation.

The contact surfaces between spindle heads and spindle are all precisely hand scraped, to ensure optimal performance and its precision.

The contact surfaces of spindle heads are all precision hand scraped.

3 axes are driven by FANUC αi series absolute AC direct drive servo motor, which provides powerful thrust and fast acceleration and deceleration movement. It can greatly decrease motor load, and lower thermal expansion effects to minimum, while ensuring optimal performance and precision.

The high precision twin rotating nut ball screws provide outstanding heavy-duty cutting and ensure precision and long life span.

The one-piece ball screw motor mount and bearing box allows the cutting pressure to evenly distribute across the casting body, which increases the axial system overall rigidity and prevents the ball screw from deformation.

3 axes maximum feed rate can reach up to 48 m/min ( 1,890 IPM ).

Twin rotating nut ball screw
