Optimum Spindle System
2-step heavy-duty gear box.

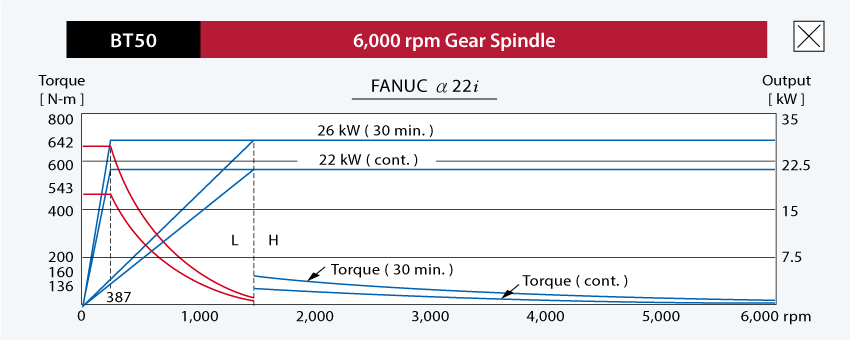

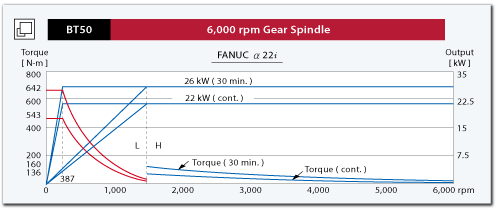

6,000 rpm high torque spindle is equipped with powerful 26 kW motor delivers maximum torque output of 642 Nm at 387 rpm.
Powerful Cutting Capability
lnner-rail embraced structure provides high rigidity and gains good stress flow which minimizes overhang and vibration issues. The Y-axis linear guide ways offset from each other increases structural rigidity reduces distance between spindle to cross beam enhances overall cutting performance.

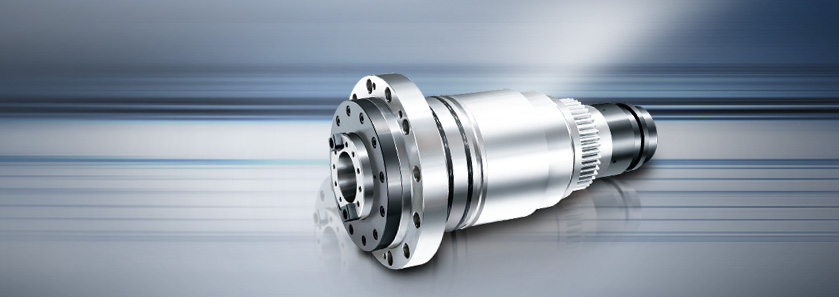

Centro-symmetric Main Spindle System
Unique head design which the main spindle, spindle motor, ball screw and hydraulic counter balance cylinders are symmetrically placed. Hereby preventing thermal distortion and minimizing deflection. Assuring accuracy and heavy cutting capability.
