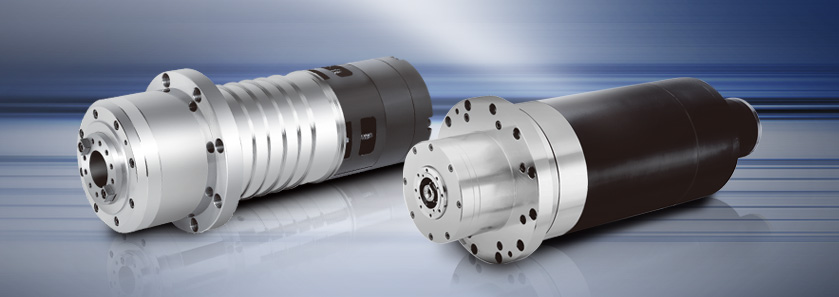

Ultimate Machining Power
Optional coolant through spindle. ( 20 bar )

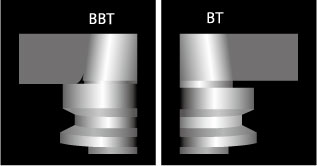

The inner taper of the spindle conforms with BBT40 tool to provide a firmer grip to the tools, which prevents tool vibration that affects machining accuracy. ( HSK-A63 is option )

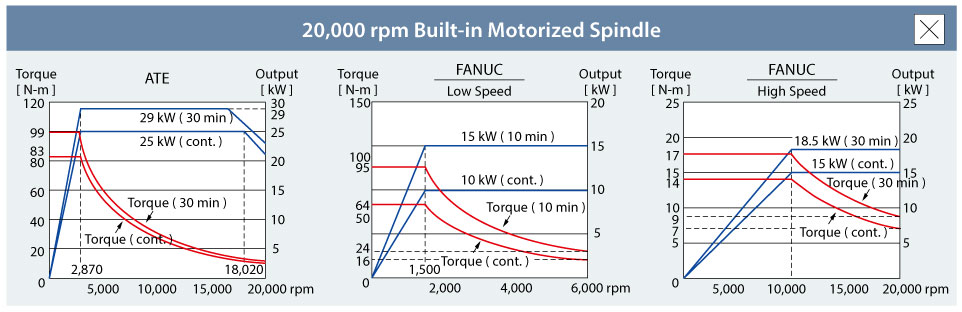

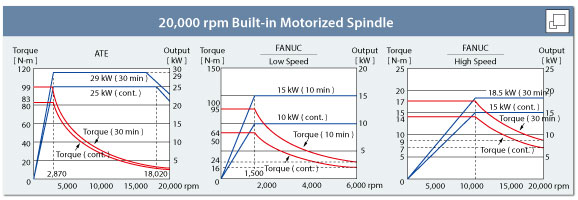

High speed built-in spindle
Built-in spindle efficiently lowers vibration of spindle while machining, which also extend life time of spindle and promote long period of machining accuracy.

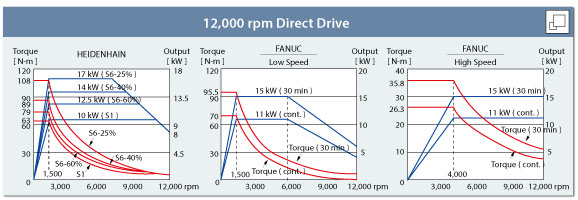

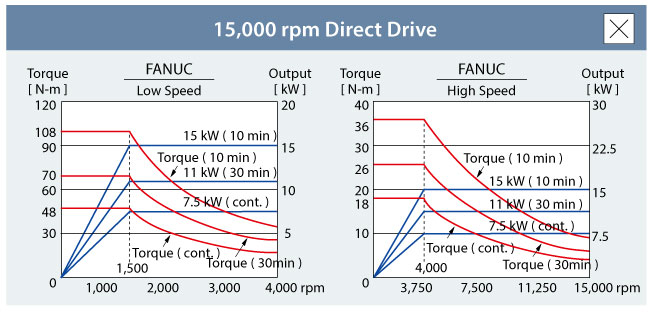

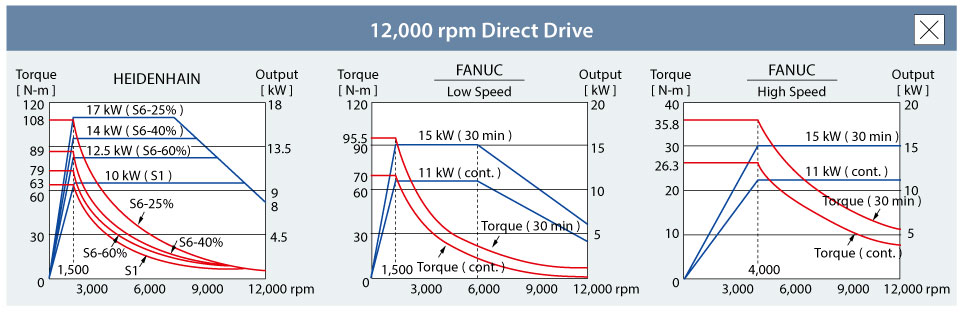

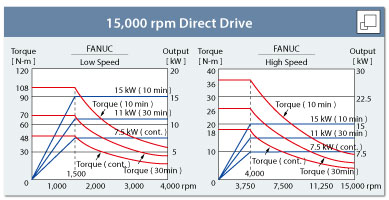

High speed direct drive spindle
Direct driven design efficiently isolates heat from motor, reduces thermal deformation, and maintain long period of machining accuracy.
