Ultra Performance 5-axis Machining Center

Derived from YAMA SEIKI's advanced R&D technology and high quality components, FCV series 5-axis machining center offers high speed, high accuracy, easy operation and many other superior capabilities. FCV series is having best performance costratio than any other same class models in the field of the 5-axis machining center.

Outstanding 5-axis simultaneous machining ability can finish complicated parts in a single setup which especially suits automobile, aerospace, medical and other industries that needs of high accuracy.

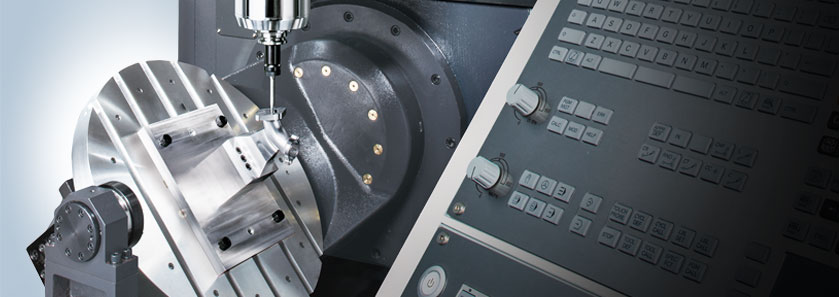

High performance B / C-axis rotary working table. Table load capacity is up to 300 kg ( 0˚ ~ 45˚ ). B-axis swiveling range is -50˚ ~ +110˚ .
Depend on different machining characteristics, FCV series provides 12,000 / 15,000 rpm direct drive spindle or 16,000 / 20,000 rpm high speed built-in spindle.

Double door design provides convenient loading and unloading space.
Optimal compact structure design minimizes floor space as well as increases the use of factory space.
Controller panel adopts 160˚ swivel design which ensures convenient operation for workers.
High efficiency 32 T arm type ATC system is equipped as standard accessory. 40 T / 60 T is also available for option.
