High Performance Spindle System
Gear spindle combines with High-Low 2 steps gear box design to provide large torque output.
High hardness Nickel-molybdenum-chromium alloy gear mechanism with auto lubrication and cooling system ensures the performance and lifetime of gear transmission box.
High speed spindle and affordable belt type spindle options, which can be adapted with different kinds of spindle motor to fulfill variety of requirement.
Spindle, spindle motor, and gear box all pass through the completely running test ensures the performance and lifetime.
Spindle taper
| Models | BM-850 | BM-1020 | BM-1200 | BM-1460 | BM-1400 | BM-1600 | BM-1800 | BM-2100 | BM-2500 |
|---|---|---|---|---|---|---|---|---|---|
| Standard | CAT 40 | CAT 50 | CAT 50 | ||||||
| Optional | CAT 50 | CAT 40 | --- | ||||||

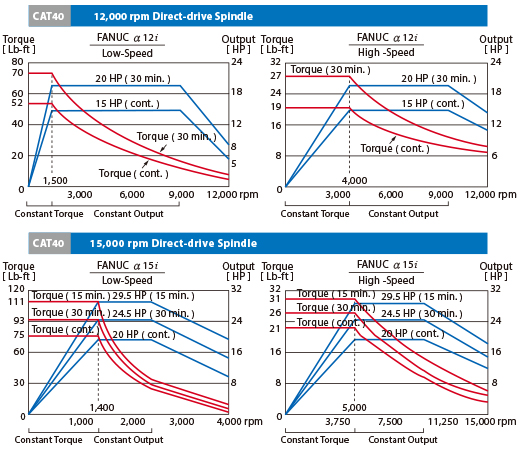

CAT40 / Direct-drive Spindle output

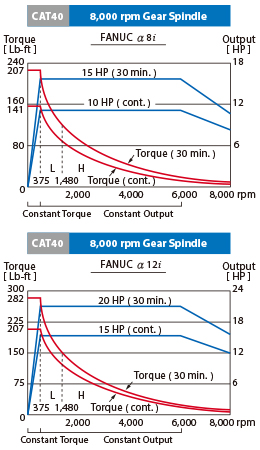

CAT40 / Gear Spindle output

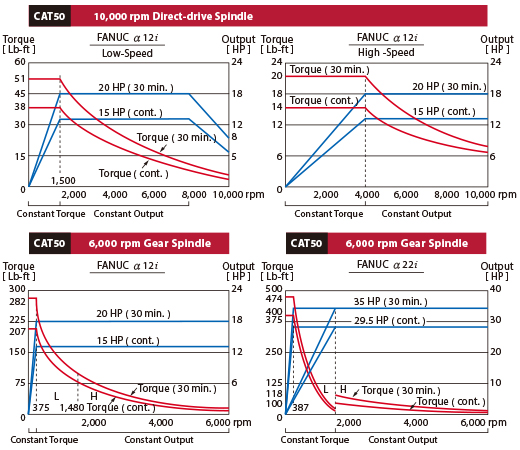

CAT50 / Direct-drive Spindle output

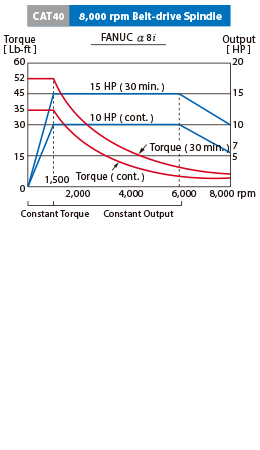

CAT40 / Belt-drive Spindle output
