Milling Head Combination
All milling heads includes 35° head, 90° head, extension head and universal head are self developed and assembled.
The contact surface of all milling heads and covers are precisly hand scraped while using the Japanese 2-piece curvic coupling for precision positioning.
The automatic milling head can be controlled by programming.
35° Head
Automatic head lock /
manual tool lock
Cs-axis automatic 5° index
Max. speed : 2,000 rpm
Max. output : 22 kW ( 30 HP )
90° Head
Automatic head lock /
automatic tool lock
Cs-axis automatic 5° index
Max. speed : 2,000 rpm
Max. output : 22 kW ( 30 HP )
Extension Head
Automatic head lock /
hydraulic tool lock
No index function
Max. speed : 3,000 rpm
Max. output : 22 kW ( 30 HP )
Universal Head
Automatic head lock /
manual tool lock
Cs-axis automatic 5° index
( A-axis manual )
Max. speed : 2,000 rpm
Max. output : 22 kW ( 30 HP )
Top
High Flexibility 5-Face Machining Capability
The LG series could be equipped with automatic head changer and vertical / horizontal ATC system to provide maximum efficiency as of a 5-face machining center.
There are 2 or 3-head storage units available based on actual requirements. Furthermore, up to 6-head storage unit could be provided according to the Y-axis size, to meet with various processing needs.

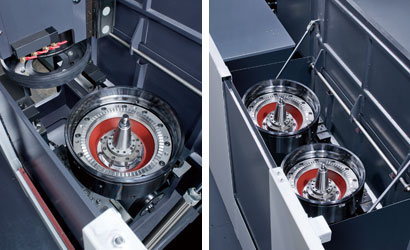

Head storage is enclosed design, which eliminates the contaminations, to ensure all milling heads last longer.
The automatic head changer is adopted with air pressure design, when the cover is opened, the spindle can directly clutch the head inside the storage, decreasing head changing time.

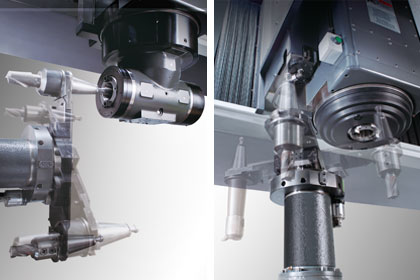

High Performance Vertical / Horizontal ATC System
