YAMA SEIKI - 5-Axis Machining Center MEGA5 series

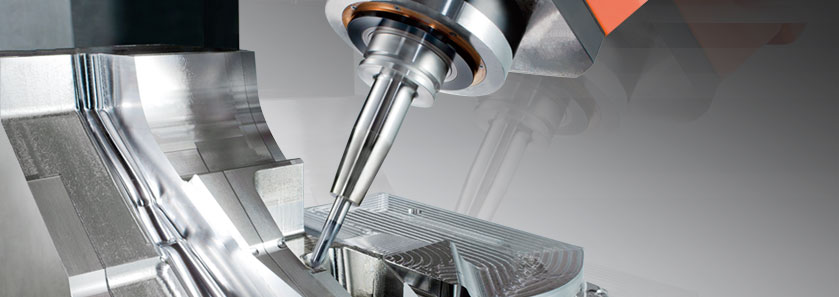

Powerful High Speed Spindle with Accuracy

Whole series of MEGA5 can select HSK-A100 high torque spindle for heavy cutting or HSK-A63 24,000 rpm high speed spindle. MEGA5 series is not only suitable for high speed high accuracy cutting but also suitable for heavy cutting at low rpm range.

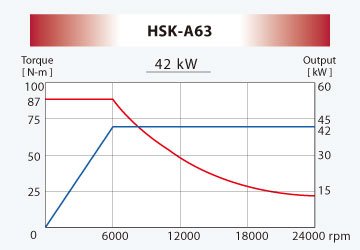

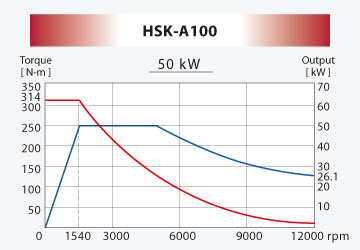

Maximum torque output

[+]

[+]

[+]

High accuracy built-in motorized spindle thermal expansion reaches stable state within 10 minutes from machine cold start. Even under long time continuous machining, the spindle thermal expansion variation is still within 0.01 mm ( 0.0003" ) range.
