Ultimate C-axis Spindle
The Cf-axis and disk brake system provide the most rigid and powerful type of C-axis control on the market today.
Working with the live tooling turret, the Cf-axis and disk brake system enables the machine to perform multiple tasks, such as drilling, tapping, and milling operations, including cylindrical and polar coordinate interpolations, resembling a 4th-axis rotary table on a machining center.
With the FANUC servo motor generating an ultra high resolution of 1,000,000 pulses per spindle rotation and high torque, machined surface finishes are much superior than Cs-axis ( driven by spindle motor ) equipped machines. Plus, dynamic accuracy is within ± 0.02° even under heavy cutting loads.

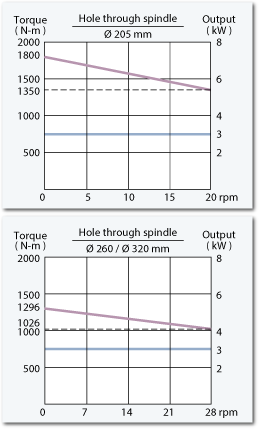

Cf-axis Output
TopY-axis Machining Capability
Super large Y-axis travel is of 320 mm ( 12.59" ), which can easily fulfill machining conditions for large size work pieces in aerospace, shipbuilding and energy industries.
| Super large Y-axis travel |
| 12.59" = ± 6.29" |
|---|
Y-axis control further enhances multi-tasking live tooling capabilities and improves various machining precision. High precision grooving and X-axis off-center drilling are enabled.
The low center of gravity box way is designed with a wide span structure to increase overall rigidity.

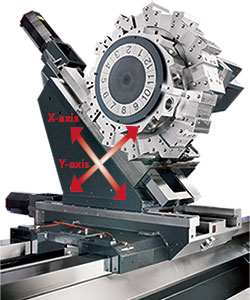

The 45˚ angle of X and Y axes allows the center of gravity of the turret to remain in the saddle guide way to ensure machining accuracy and decrease distortion.
