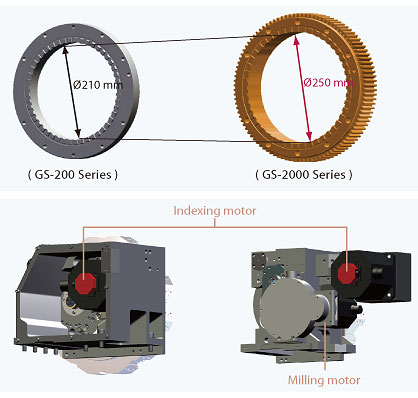

GS-2000 equipped the super heavy-duty servo indexing turret features the newest non-lifting turret disk technology. Achieving 0.2 second indexing times for adjacent station. 9,84" ( 250 mm ) diameter super high precision 3-pieces curvic couplings ensures abundant turret rigidity for all cutting conditions.

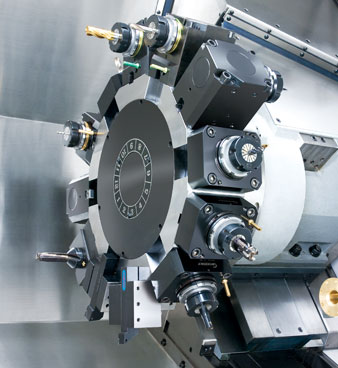

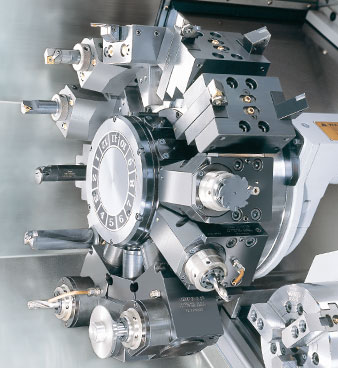

Two types of live tooling turret are available. Except GS-200 series YAMA SEIKI made high performance live tooling turret. A brand new, super high power built-in motor live tooling turret is also provide.

Built-in spindle provides ultra high performance cutting capability which also decrease.

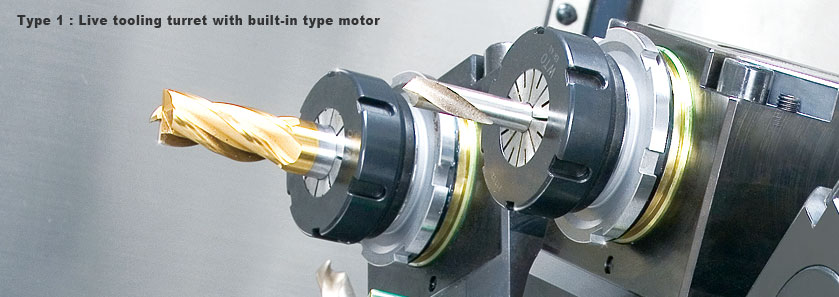

Live tooling turret can fits maximum ER40 collect to make even the toughest of jobs may be tackled without a sweat.

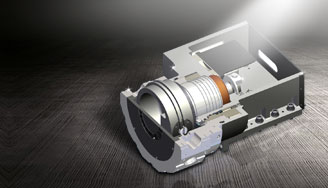

The optional live tooling turret is mated with a built-in motor which provides high accuracy, good heat dispersion and low noise characteristics.

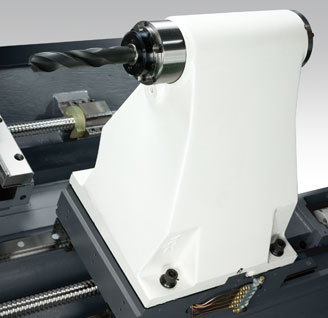

Programmable tailstock is moving by servo motor & ball screw. Hydraulic system is saved. This helps to get a big working room and less interference.

Programmable tailstock is standard with built-in spindle type and optional live center type is available.
