ULTIMATE TURNING POWER

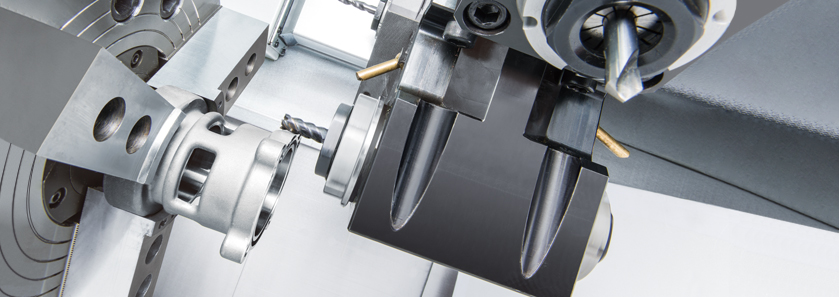

The heavy-duty headstock is one-piece casting reinforced with heat dispensing fins, which can fasten heat radiation, minimize thermal displacement and lower accuracy error of thermal deformation.
P4 grade ( Class 7 ) super-high precision bearings are directly assembled for maximum level of support and precision. Bearing configuration adopts optimal 2-point support design for heavy-duty cutting with stable performance and long term high accuracy durability.
Specialized high performance V-type belt driven spindle motor can lower the effects of heat generated by motor. Pulley ratios has been adjusted to tune the motor's maximum speed to match the spindle's maximum speed, which result in full output at the lowest speed and maximize torque.
