Machining capability

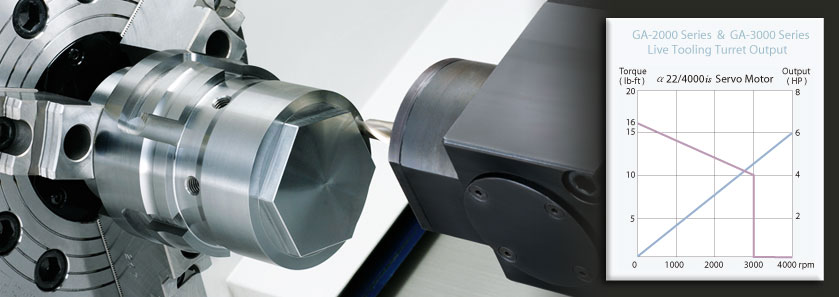

Live Tooling turret Specification

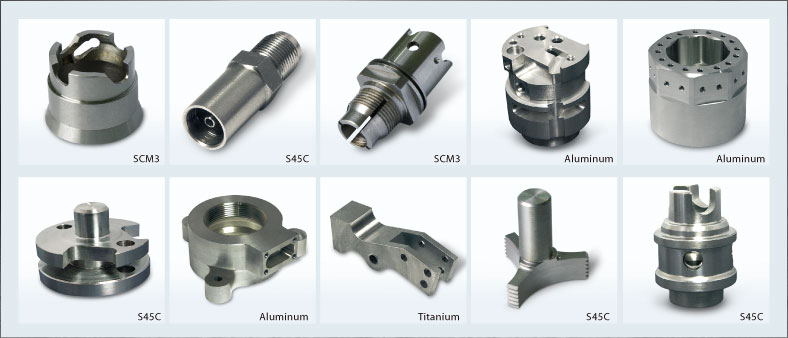

Sample Work Pieces
OD HEAVY CUTTING EXAMPLE
| Models | Tools mm ( inch ) |
Spindle Speed ( rpm ) |
Feed rate mm/min. ( IPM ) |
Cutting Speed m/min. ( IPM ) |
Cutting Depth mm ( inch ) |
|
|---|---|---|---|---|---|---|
| Drill | GA-2000 GA-3000 |
Ø 20 ( 0.79" ) | 600 | 60 ( 2.36 ) | 38 ( 1,496 ) | N / A |
| End mill | Ø 20 ( 0.79" ) | 1,000 | 200 ( 7.87 ) | 63 ( 2,480 ) | 12.7 ( 0.5" ) | |
| Tapping | M16 * P2.0 | 200 | 400 ( 15.75 ) | 10 ( 394 ) | N / A | |
| Raw Material : S45C | ||||||
| Drive Motor Power ( cont. ) |
Drive Motor | Max. Tapping Capacity | Max. Milling Capacity | Gear Ration |
|---|---|---|---|---|
| 4.5 kW ( 6 HP ) | FANUC α22/4000is | 16 mm ( 0.63" ) | Ø 20 mm ( 0.78" ) | 4 : 3 |
Top

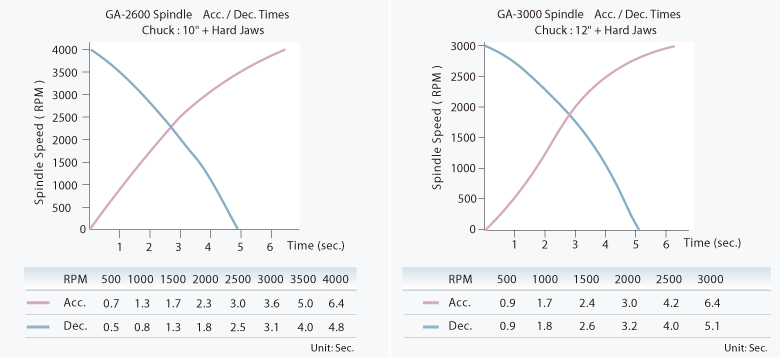

Machining Performance

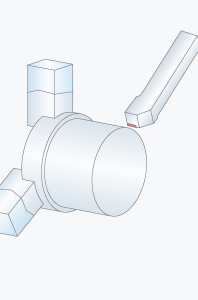

OD HEAVY CUTTING EXAMPLE
|
||||||
|---|---|---|---|---|---|---|
| GA-2000 | ||||||
| OD Before Cut |
OD After Cut |
Spindle Speed |
F / Rev. | Depth of Cut |
SPINDLE Load |
|
| 1 | 108 mm ( 4.25" ) |
96 mm ( 3.77" ) |
500 RPM | 0.30 mm ( 0.0118" ) |
6 mm / side ( 0.2362" / side ) |
97 % |
| 2 | 96 mm ( 3.77" ) |
82 mm ( 3.22" ) |
550 RPM | 0.32 mm ( 0.0125" ) |
7 mm / side ( 0.2755" / side ) |
112% |
| GA-3000 | ||||||
| OD Before Cut |
OD After Cut |
Spindle Speed |
F / Rev. | Depth of Cut |
Spindle Load |
|
| 144 mm ( 5.67" ) |
120 mm ( 4.72" ) |
729 RPM | 0.40 mm ( 0.016" ) |
12 mm / side ( 0.4724" / side ) |
65 % | |
