Milling Head Combination

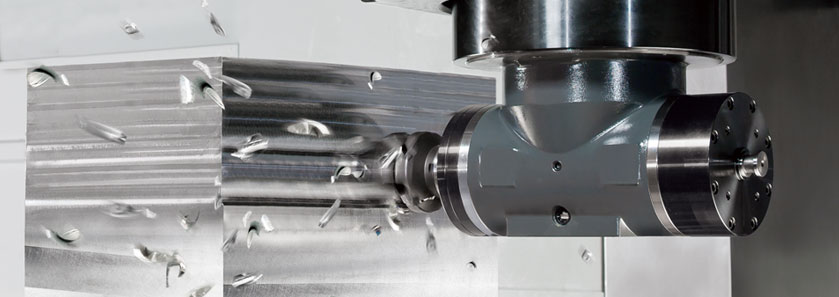

All milling heads includes 35° head, 90° head, extension head and universal head are self developed and assembled.
The contact surface of all milling heads and covers are precisly hand scraped while using the Japanese 2-piece curvic coupling for precision positioning.
The automatic milling head can be controlled by programming.
Optional Milling Head ( Manual )
35° Head
Manual head / tool lock
Manual 90° index
Max. speed : 2,000 rpm
Max. output : 22 kW ( 30 HP )
90° Head
Manual head / tool lock
Manual 90° index
Max. speed : 2,000 rpm
Max. output : 22 kW ( 30 HP )
Extension Head
Manual head lock / hydraulic tool release ( manual tool lock )
No index function
Max. speed : 3,000 rpm
Max. output : 22 kW ( 30 HP )
Universal Head
Manual head / tool lock
Cs-axis manual 90° index
( A-axis manual )
Max. speed : 2,000 rpm
Max. output : 22 kW ( 30 HP )
Top
35° Head
Automatic head lock /
manual tool lock
Cs-axis automatic 5° index
Max. speed : 2,000 rpm
Max. output : 22 kW ( 30 HP )
90° Head
Automatic head lock /
automatic tool lock
Cs-axis automatic 5° index
Max. speed : 2,000 rpm
Max. output : 22 kW ( 30 HP )
Extension Head
Automatic head lock /
hydraulic tool lock
No index function
Max. speed : 3,000 rpm
Max. output : 22 kW ( 30 HP )
Universal Head
Automatic head lock /
manual tool lock
Cs-axis automatic 5° index
( A-axis manual )
Max. speed : 2,000 rpm
Max. output : 22 kW ( 30 HP )
