CNC 5-axis Gantry Type Milling Center FMV-99 wit Heidenhain iTNC 530

FMV-99 series 5-axis Machining Center

As a high quality 5-axis machine, FMV-99 utilizes U shaped high rigidity structure with dual supported A, C axes rotation table. Combination of 16,000 rpm built-in spindle , heavy duty roller linear guide ways and three axes linear scales achieve X, Y, Z, A, C 5-axis simultaneous accuracy. Complex shape machining, drilling, tapping, slanted machining, helical machining and intricate shape machining can be done easily.

Direct Driven Motor

A, C axes are all driven by DD motor, equipped with rotary encoder. Superior power transmission efficiency and energy saving than conventional worm gear design.

Built-in Spindle

Built-in high speed spindle can carry 100% power transmission, also the spindle is adapted with low noise and low spindle thermal expansion characteristics.

Heavy Load Table

High rigidity 800 x 800 mm rotation table support heavy table load up to 1,000 kgs gives you excellent cutting flexibility.

Symmetrical Hydraulic Brake system

Two sides of rotation table is adapted with circular hydraulic break system to act in agile and efficient braking ability during heavy load and high speed rotation.

Rapid 3 Axes Feedrate

X / Y / Z axes rapid feedrate up to 48 m/min.



ATC Tool Changer

Arm type ATC with expandable tool capacity is located in the back side of machine. ATC design shorten tool waiting time.

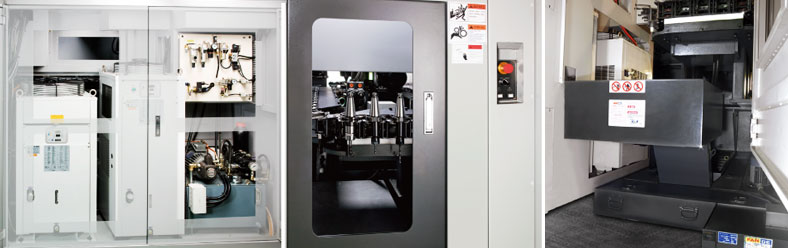

FMV-99 Cooling System, 40-Tool ATC, Coolant Tank Cooling System

Spindle and A / C axis cooling system and hydraulic system are all located within splash guard of machine. This compact design with large four pieces window provides easy maintenance accessibility.

40-tool ATC

Standard ATC with 40 tools capacity and tool magazine control panel provides you excellent tool exchange efficiency. ( 80 tools capacity is also available )

Coolant Tank & Chip Conveyor

Built-in large volume coolant tank and chip conveyor are located in inner side of machine. Reduce the floor spece and provides good chips removal efficiency.
