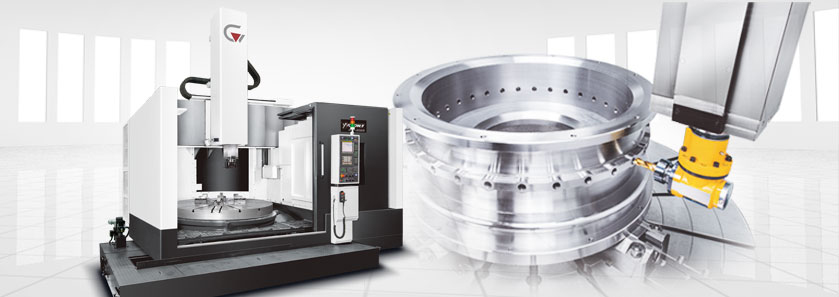

SUPER RIGIDITY VERTICAL TURNING CENTER
With leading technology and high quality components, the GVF series CNC vertical turning center combines a super rigid ram structure and high torque gear type spindle design to provide you heavy cutting abilities for large sizes that are superior to competitors' models in the aerospace and energy industry. Plus, with the optional live tooling spindle, Cf-axis control, and multi-purpose milling heads, turning, milling and drilling applications may be completed for both end surface and cylindrical surface to accomplish demanding turning applications of today and tomorrow.
Enclosed splashguards keep chips and coolant contained for a safe clean working environment.
Extra wide door enables large size work-pieces to be loaded onto the work table with a crown block providing easy loading and unloading operations.

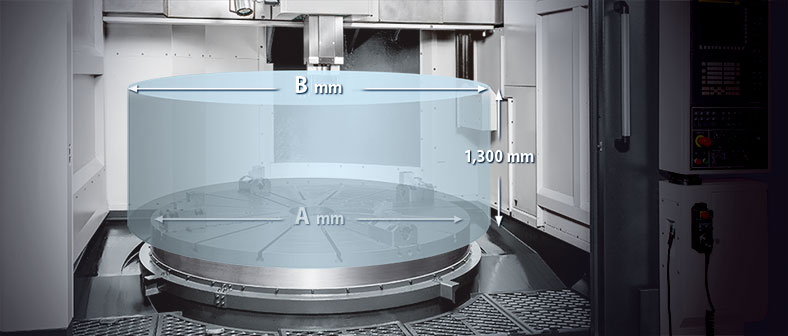

|Models||A Table diameter||B Max. turning diameter|
|GVF-1112||Ø 1,100 mm ( 43.3" )||Ø 1,200 mm ( 47.2" )|
|GVF-1214||Ø 1,250 mm ( 49.2" )||Ø 1,400 mm ( 55.1" )|
|GVF-1215||Ø 1,250 mm ( 49.2" )||Ø 1,500 mm ( 59" )|
|GVF-1618||Ø 1,600 mm ( 63" )||Ø 1,800 mm ( 70.8")|
|GVF-2023||Ø 2,000 mm ( 78.7" )||Ø 2,300 mm ( 90.5" )|
Specifications are subject to change without notice.
