Quickly Gang Type Turret
Standard gang type tool holding device flexibly increases machining applications. The maximum capacity is 8 inner-diameter cutting tools at the same time.

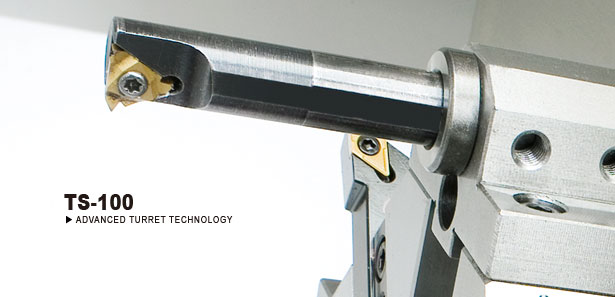

Advanced Turret Technology8-station turret ( Opt. )
4.72”( Ø120mm ) diameter super high precision curvic couplings accurately position the turret disk and clamping force ensures abundant turret rigidity for all cutting conditions. The standard 8-station turret clears 6” diameter work holding devices without interference, even when loaded with tooling at maximum shank size. The heavy-duty servo indexing turret achieves 0.2 second indexing times for adjacent stations and 0.5 second for stations at the opposite end of the disk. Index movements are single step, without pauses , no matter how many stations are skipped.
