Advanced Turret Technology

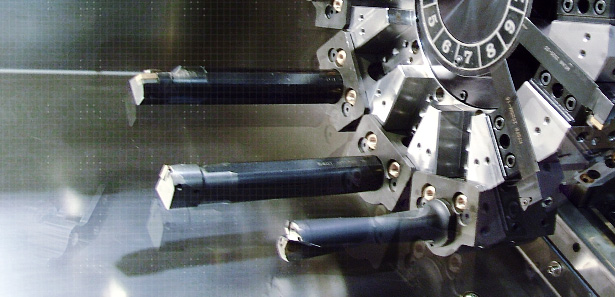

The super heavy-duty servo indexing turret features the newest non-lifting turret disk technology. Achieving 0.2 second indexing times for adjacent stations and 0.5 second for stations at the opposite end of the disk. Index movements are single step, without pauses, no matter how many stations are skipped. 220mm ( 8.66” ) diameter super high precision 3-piece curvic couplings accurately position the turret disk and 4,000 kg ( 8,800 Ibs. ) of clamping force ensures abundant turret rigidity for all cutting conditions. The standard 12-station turret clears 8” diameter work holding devices without interference, even when loaded with tooling at maximum shank size.
