Diversified Work Table Modules

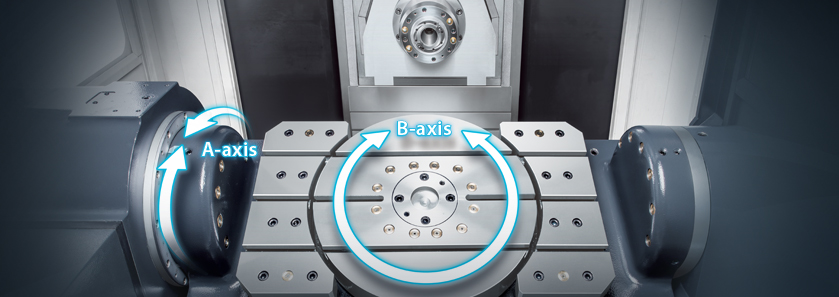

A / B axes trunnion table
• The Ø 400 mm B-axis embedded table design can be combined with a fixed table to increase the processing area for better machining flexibility.
• A / B axes with high resolution closed loop rotary encoders ensure ultimate positioning and repeatability accuracy.
EH5-500 | A-axis | B-axis |
---|---|---|
Rotary range | +120° ~ -42° | ±360° |
Min. table index | 0.001° | |
Repeatability | ±4 arc-sec | ±3 arc-sec |
Trunnion Table | EH5-500 | |
---|---|---|
Table size | 24.4" x 14.17" | |
Table diameter ( B-axis ) | Ø 15.74" | |
Table load capacity | 0°~ 45° | 440 lb |
60°~ 90° | 220 lb | |
Max. work-piece height | 25.59" | |
Max. work-piece diameter | Ø 23.62" |
High performance B-axis drive mechanism
• High rigidity two-piece worm gear design. The contact area is more than five times that of conventional designs, delivering twice the torque output with high precision, high transmission efficiency, and low wear.
• The fully circumferential hydraulic brake system effectively prevents disk deformation due to unbalanced torque, achieving high rigidity and heavy duty cutting performance.

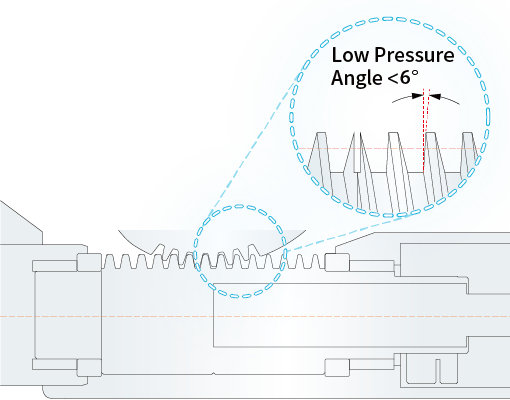

*1 The worm gear contact areas are designed with a low pressure angle, providing higher torque output.

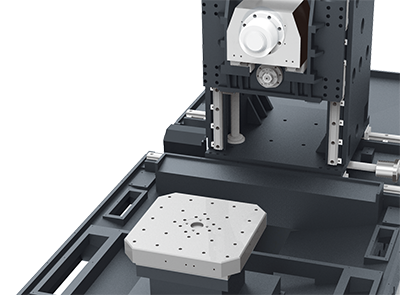

Fixed table
Model | EH-500 |
---|---|
Table size ( X x Y ) | 19.68" x 19.68" |
Table load capacity | 1,320 lb |
Max. work-piece height | 25.98" |

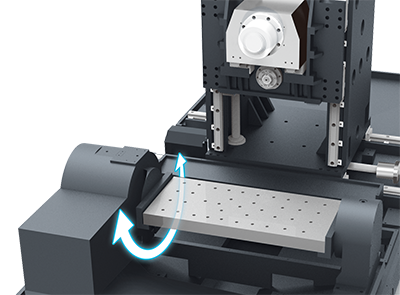

A-axis table
Model | EH-500 |
---|---|
Table size ( X x Y ) | 24.4" x 14.17" |
Table load capacity | 660 lb |
Max. work-piece height | 20" |
A-axis swing range | 0° ~ 90° |
Table indexing ( A-axis ) | 0.001° |

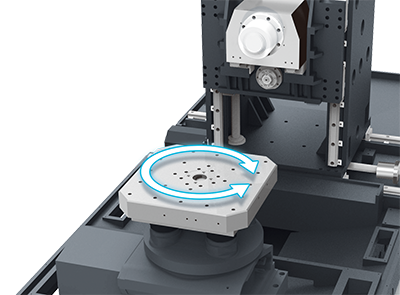

B-axis table
Model | EH-500 |
---|---|
Table size ( X x Y ) | 19.68" x 19.68" |
Table load capacity | 1,320 lb |
Max. work-piece height | 25.98" |
Max. work-piece diameter | Ø 23.62" |
B-axis rotary range | ± 360° |
Table indexing ( B-axis ) | 0.001° |

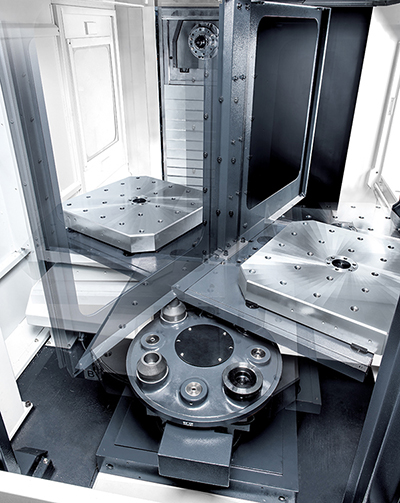

Automatic pallet change system
• The work table seat in the processing area is equipped with four hydraulic clamping mechanisms and tapered positioning cones that provide efficient clamping and accurate positioning for the table.
• Air blast cleaning of the positioning cones and monitoring the seal air pressure ensure reliability and durability of the pallet changer.
Model | EH-500APC |
---|---|
Table size ( X x Y ) | 19.68" x 19.68" |
Table load capacity | 1,320 lb |
Max. work-piece height | 25.98" |
Max. work-piece diameter | Ø 24.8" |
B-axis rotary range | ± 360° |
Table indexing ( B-axis ) | 0.001° |
